Swagger Studio Code Editor

Swagger Studio provides an in-browser code editor that allows you to work with both OpenAPI and AsyncAPI definitions in YAML format. You can write, edit, and preview API definitions in real time, with support for multiple specification versions.

Note

Alternatively, you can use Swagger Studio extension for Visual Studio Code to create, edit, and validate API definitions and domains. For more information, see Visual Studio Marketplace.

The API definitions are stored in the YAML format. You can also import or paste JSON and edit it directly, or convert it to YAML. Note that you can download your AsyncAPI definitions in both YAML and JSON format.

In addition to the code editor, also includes form editor for selected OpenAPI specifications. The form editor allows you to edit API metadata and operations with no OpenAPI syntax required.

Supported specifications

Swagger Studio code editor supports the following specifications:

Overview

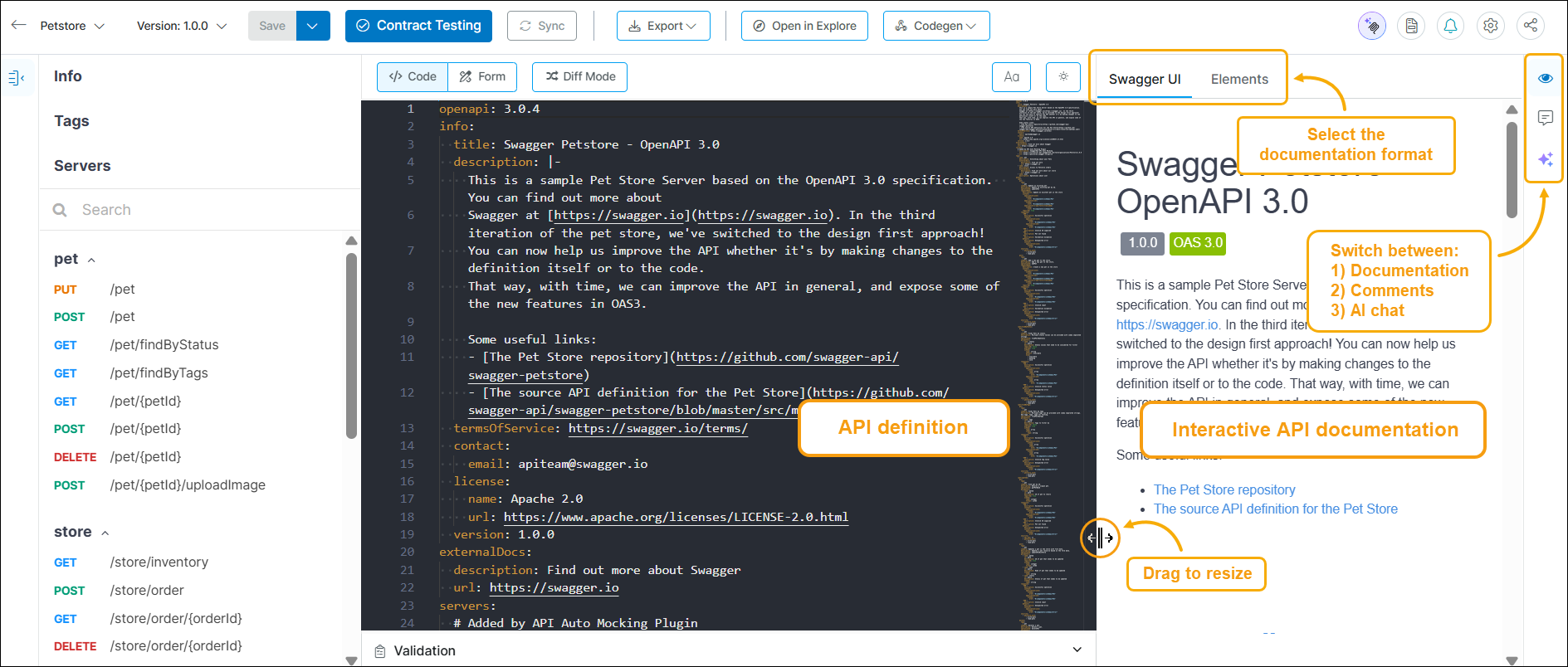

Swagger Studio features a split-view interface with the code editor on the left and interactive API documentation on the right. This layout allows you to write and preview your API definitions in real time.

The code editor supports the following features:

  • Autocomplete for specification keywords

  • Syntax highlighting

  • Code folding

  • Search and replace

  • Keyboard shortcuts


The interactive API documentation updates automatically as you type. It helps you visualize your API and make live API calls directly from your browser. You can preview your API documentation in either Swagger UI or Elements format by selecting the corresponding tab in the right-hand panel.

Use Diff Mode to compare your current edits with the last saved version of the API. Select Revert to Last Saved to undo your changes.

Save

Important

When working on the same API along with other collaborators, keep in mind that Swagger Studio does not support simultaneous editing. Changes are not merged; they are overwritten by the user who saves them last. Make sure to coordinate your editing sessions with other collaborators.

Open the Recent Org APIs dropdown menu next to the last breadcrumb to view the five most recent API definitions you accessed in the code editor. Each listed entry includes the API name and version number. Select an API from the list to open it in the editor. To view all recently accessed APIs, click All Recents at the top right of the dropdown.

Tip

The Recent Org APIs list is limited to the currently selected organization. To view recent APIs from another organization, switch organizations in the top right menu.

Syntax validation

As you type, Swagger Studio automatically validates your API definition and highlights issues such as syntax errors, unresolved references, or unused definitions. To view the list of issues, expand the validation bar at the bottom of the editor.

Click an error message to view the corresponding line in the editor.

Swagger Studio uses lazy loading for domain references, which may affect how domain-related errors appear in APIs. See Lazy Loading to learn how to validate both the API and its referenced domains.

If your organization uses API Governance, the editor will display style issues and rule violations for OpenAPI and AsyncAPI 2.x.x definitions, based on your organization's guidelines.

Swagger Studio code editor supports Spectral validation, allowing you to check your definition in real time against predefined rulesets. The error list below the editor displays detected issues, grouped by rule and filterable by severity.

Info Panel: manage API and integrations

Click the API name in the header area to open the Info Panel, where you can manage your API. Depending on your role (owner or collaborator), on the Details tab you can:

  • SH_Icon_CodeEditor_04.png Fork or delete the API (available for AsyncAPI).

  • SH_Icon_CodeEditor_05.png Transfer ownership.

  • SH_Icon_CodeEditor_06.png Delete the API.

  • SH_Icon_CodeEditor_07.png Rename the API.

  • SH_Icon_CodeEditor_08.png Compare and merge the API.


On the Integrations tab of the Info Panel, you can configure integrations for your API and view its metadata such as:

  • Owner: The owner of the API.

  • Created By: The name of the user who created the API.

  • Last Saved: The last saved timestamp.

  • Created: The date of creation.

Note

The Created By information is available only for API and domain versions created in Swagger Studio after November 26, 2019. For earlier versions, refer to the audit logs.

Version selector

If your API has multiple versions, you can switch between them using the dropdown menu next to the version number in the header.

Editor options

You can customize your editing experience by:

  • Adjusting the editor font size.

  • Switching between dark and light themes.

These preferences are saved in your browser and retained across sessions.


Source control integration

If your API is connected to a source control system (for example, GitHub), click the Sync Management button to generate code and push changes directly to the configured repository branches.

Note

The legacy GitHub Push option is still available but deprecated. Use GitHub Sync for current integrations.

Export options

Swagger Studio allows you to export API or domain definitions in multiple formats. To do so, click Export and choose the resource type you want to generate:

  • Download API/Domain: YAML or JSON.

  • Client SDK: Generates a client SDK in the selected language.

  • Server Stub: Generates a server stub in the selected language.

  • Documentation: Generates documentation in the selected format.

  • Codegen Options: Customize code generation options for stubs and SDKs.

Contract Testing

If Swagger Studio is configured for the current API, you can select Contract Testing on the toolbar to check compatibility between your API definition and the expected contract.

Note

This feature is available only for OpenAPI definitions up to version 3.0. It is not supported for OpenAPI 3.1 or AsyncAPI.

Code generation

Swagger Studio allows you to generate code using the Codegen functionality. It fully supports OpenAPI 2.0 and OpenAPI 3.0 definitions. Support for OpenAPI 3.1 is currently in beta and is limited.

Learn more in Generate Code.

Miscellaneous

The code editor toolbar also includes the following options:

SH_Icon_CodeEditor_03.png View Documentation

Click to view interactive documentation for this API in a new browser tab.

SH_Icon_CodeEditor_02.png Enable/Disable Notifications

Click to subscribe to or unsubscribe from email notifications regarding changes to the API.

SH_Icon_CodeEditor_01.png Share & Collaborate

Click to invite other users to collaborate on this API.

Keyboard shortcuts

The Swagger Studio editor supports the following keyboard shortcuts for faster editing:

Find/replace

Action

Windows/Linux

Mac

Find dialog

Ctrl + F

Command + F

Replace dialog

Ctrl + H

Command + Option + F

Editing

Action

Windows/Linux

Mac

Show the auto-completion list

Ctrl + Space

Ctrl + Space

Comment out or uncomment the current line

Ctrl + /

Command + /

Delete the current line

Ctrl + D

Ctrl + D

Undo

Ctrl + Z

Command + Z

Redo

Ctrl + Y, Ctrl + Shift + Z

Command + Shift + Z

Indent selection

Tab

Tab

Outdent selection

Shift + Tab

Shift + Tab

Select all

Ctrl + A

Command + A
