With TestComplete, you can test Xamarin.Forms, Xamarin.Android and Xamarin.iOS applications:

• Xamarin.Forms. TestComplete recognizes controls in Xamarin.Forms applications and offers special wrapper test objects with control-specific methods and properties for simulating user actions on these controls. This topic overviews the details of this support.

• Xamarin.Android and Xamarin.iOS. TestComplete recognizes controls in these applications as “native” Android or iOS controls. You prepare these applications and run them in the same way you do this when working with regular Android and iOS apps. See Testing Android Applications (Legacy) and Testing iOS Applications (Legacy).

• Rg.Plugins.Popup. TestComplete recognizes Xamarin.Forms controls inside containers created with the Rg.Plugins.Popup library.

TestComplete can test applications created with Xamarin.Forms version 2.5.0.

These applications can be compiled with any development tool, but they should run on the supported operating systems:

• Android

  Running on Android 4.0.1 - 4.4.x, 5.0 - 5.1.1, 6.0, 7.0 - 7.1.1, 8.0 - 8.1, 9.0 (API Level 15 - 19, 21 - 28), 10.0, 11.0 on one of the supported devices.

• iOS

  Running on iOS 13.0 - 13.7, 14.0 - 14.7, iPadOS 13.0 - 13.7, 14.0 - 14.8, 15.0 - 15.3 on one of the supported devices.

  Note:

  You may experience performance issues during test recording and playback on older iOS devices like iPhone 5S.

To create and run tests for your Xamarin.Forms applications, you need to prepare your application and your testing environment for testing. The way you can do this depends on the mobile platform you use:

In TestComplete, you can record tests or create tests manually as keyword tests or scripts. It is usually easier to record a test first and then modify it.

When recording a test, you interact with your mobile application as an end-user would: navigate through application screens, fill out forms, and so on. TestComplete captures all the actions you perform in the application and adds them to the test.

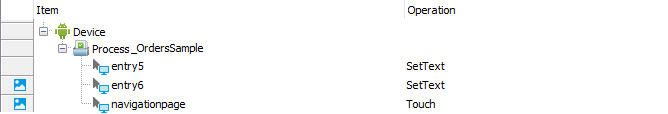

A test consists of a sequence of operations with the device and objects of the tested application. For example, the following keyword test uses the SetText operation to simulate text input into text boxes, and the Touch operation to simulate touching a control:

You can improve and modify the recorded tests in a number of ways to create more flexible and efficient tests. For example, you can:

• Add new operations to the recorded tests, reorder operations and modify their parameters.

• Delete or disable unneeded operations (for example, superfluous operations).

• Insert checkpoints to verify the state of the tested application.

• Create data-driven tests that run multiple test iterations using different sets of data.

The following topics provide detailed information about creating and enhancing tests:

You can record or manually create tests that will perform various test actions against Xamarin.Forms applications:

• Simulate touches and long touches

• Simulate swipes

• Input text

• Verify the state of objects and their properties

• Call methods and properties of controls

• And so on.

To simulate user actions on your tested application, you can use the methods and properties TestComplete provides for Xamarin.Forms controls. For information on the available methods and properties, see Supported Xamarin.Forms Controls.

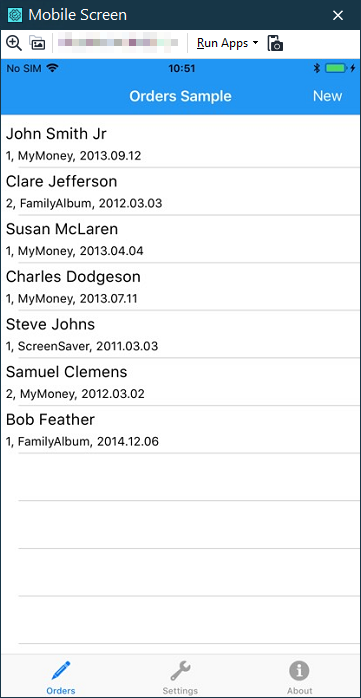

TestComplete includes the Mobile Screen window that shows the screen of the mobile device (or emulator or virtual machine) where your tested application is running:

Click the image to enlarge it.

The Mobile Screen window makes the application screen as accessible as your computer’s desktop. When you perform various actions in this window, like touches, swipes or keystrokes, TestComplete passes them to the application under test. Similarly, any changes on the application screen are reflected in this window. In other words, you can use the Mobile Screen window to work with a Xamarin.Forms application without accessing your mobile device.

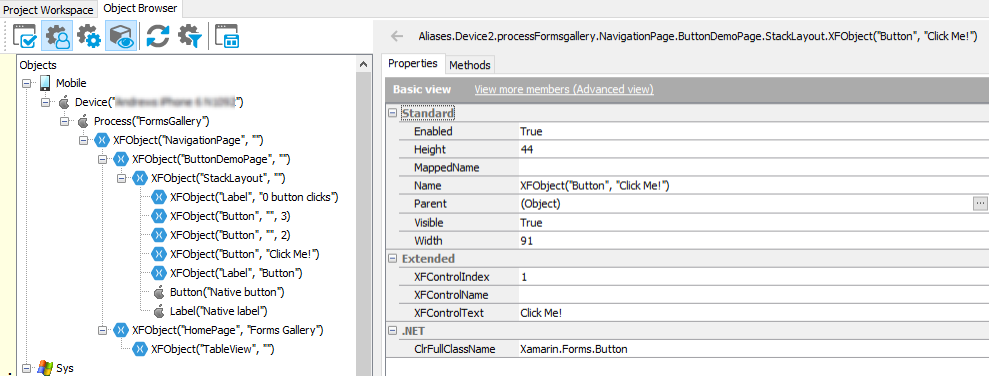

You can explore the hierarchy of your tested Xamarin.Forms application in the Object Browser in TestComplete:

Click the image to enlarge it.

The top-level object for Xamarin.Forms applications is Mobile. It provides access to the mobile devices to which TestComplete is connected. The child Device objects of the Mobile object correspond to the connected devices. Below Device, there is the Process object that corresponds to your tested application. Note: If there are no prepared applications running on a device, the Device node has no child nodes.

The object hierarchy of the process node corresponds to the inner hierarchy of controls in your application.

TestComplete recognizes objects in Xamarin.Forms applications as cross-platform Xamarin.Forms objects. These objects are the same both for the Android and iOS platforms:

Click the image to enlarge it. A Xamarin.Forms application running on an iOS device

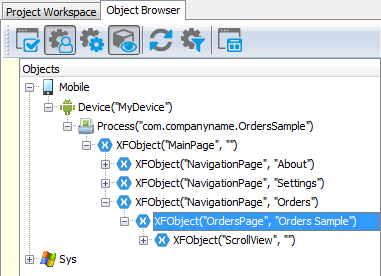

Click the image to enlarge it. A Xamarin.Forms application running on an Android device

TestComplete detects control class names and text, and uses them to name test objects: XFObject("Button","Click Me!"), Label("Native label") and so on. If an object has no text, its name looks like XFObject("Button", ""). If there are several objects that contain the same text (or do not contain any text), TestComplete adds indexes to their names to distinguish the objects: XFObject("Button", ""), XFObject("Button", "",2), and so on.

To simulate user actions on Xamarin.Forms objects, you use the methods and properties TestComplete provides. See Xamarin.Forms Objects.

If a Xamarin.Forms application includes platform-specific objects, TestComplete will recognize them as appropriate Android or iOS objects.

You can easily create and run cross-platform tests for your Xamarin.Forms applications both on Android and on iOS devices.

To create cross-platform tests: Your tested application must not have platform-specific objects and must have the same object hierarchy for the Android and iOS platforms.
You may also need to modify your recorded tests to be able to run them both on Android and on iOS devices. For instance, you will have to modify hard-coded coordinates that TestComplete records (for example, for the Touch method). Coordinate values recorded for one platform will not be applicable when running the test on another platform.
In addition, if you use Name Mapping, you will have to modify recognition parameters for your mobile devices to allow TestComplete to run your tests on both platforms. See Note on Mapping Device Objects.

To verify the properties of Xamarin.Forms application objects, you can use property checkpoints. You can also use region checkpoints to compare the device screen or its part with some baseline image.

You can find a detailed description of how to create checkpoints for Xamarin.Forms applications in the Checkpoints section.

When creating checkpoints, you specify the object you want to verify by selecting it in the Mobile Screen window in TestComplete (rather than on the actual screen of your mobile device, for example).

TestComplete includes a sample test project that illustrates testing of a Xamarin.Forms application:

To learn how to create a simple test for a Xamarin.Forms application, follow this tutorial:

Testing Xamarin.Forms Applications - Tutorial (Legacy)

• TestComplete may fail to record user actions in Xamarin.Forms applications. For example, sometimes, it may record redundant method calls, or it may record user input incorrectly.

  TestComplete may also fail to record Keys actions for text edit controls in Xamarin.Forms applications running on Android devices, for example, for multiline text edit controls or in-place text editors of list view controls. To avoid this issue, you can configure your Android device to use the TestComplete Android Agent keyboard instead of its native on-screen keyboard during test recording. To learn about the Agent keyboard, see About TestComplete Android Agent Keyboard (Legacy).

• TestComplete can record and simulate user actions only against the Back button of the Page control. The other ToolbarItem objects are not supported. To simulate user actions on them, use “native”  properties and methods of the Page control. You can use the native ToolbarItems property to get a scripting interface to the control’s buttons, and then use methods and properties of a button object to work with that button.

  The following example demonstrates how you can get access to ToolbarItem elements:

  JavaScript, JScript

  Python

  VBScript

  DelphiScript

  C++Script, C#Script

  Copy Code

  JavaScript, JScript

  function toolbarItemsTest()
  {
    // Get a page with ToolbarItems
    var page = Mobile.Device("iPhone").Process("Orders").XFObject("MainPage", "").XFObject("NavigationPage", "Orders").XFObject("OrdersPage", "Orders Sample");
    // Access a toolbar item
    var toolbarItem = page.ToolbarItems.Item(0);
    // Activate the item
    toolbarItem.Activate();
  }

  Python

  def toolbarItemsTest():
    # Get a page with ToolbarItems
    page = Mobile.Device("iPhone").Process("Orders").XFObject("MainPage", "").XFObject("NavigationPage", "Orders").XFObject("OrdersPage", "Orders Sample")
    # Access a toolbar item
    toolbarItem = page.ToolbarItems.Item[0]
    # Activate the item
    toolbarItem.Activate()

  VBScript

  Sub toolbarItemsTest
    Dim page, toolbarItem
    ' Get a page with ToolbarItems
    Set page = Mobile.Device("iPhone").Process("Orders").XFObject("MainPage", "").XFObject("NavigationPage", "Orders").XFObject("OrdersPage", "Orders Sample")
    ' Access a toolbar item
    Set toolbarItem = page.ToolbarItems.Item(0)
    ' Activate the item
    toolbarItem.Activate()
  End Sub

  DelphiScript

  procedure toolbarItemsTest;
  var page, toolbarItem;
  begin
    // Get a page with ToolbarItems
    page := Mobile.Device('iPhone').Process('Orders').XFObject('MainPage', '').XFObject('NavigationPage', 'Orders').XFObject('OrdersPage', 'Orders Sample');
    // Access a toolbar item
               toolbarItem := page.ToolbarItems.Item(0);
    // Activate the item
    toolbarItem.Activate();
  end;

  C++Script, C#Script

  function toolbarItemsTest()
  {
    // Getting a page with ToolbarItems
    var page = Mobile["Device"]("iPhone")["Process"]("Orders")["XFObject"]("MainPage", "")["XFObject"]("NavigationPage", "Orders")["XFObject"]("OrdersPage", "Orders Sample");
    // Access a toolbar item
    var toolbarItem = page["ToolbarItems"]()["Item"](0);
    // Activate the item
    toolbarItem["Activate"]();
  }
• Currently, TestComplete does not recognize the type of the TableView and ListView cells (SwitchCell, EntryCell and others), and does not provide cell-specific methods and properties. For example, if a cell contains a check box or a text box, TestComplete will not provide checkbox- or textbox-specific methods for simulating user actions on that cell. To simulate user actions in this case, use “native” methods and properties of cell objects.

  The following example demonstrates how you can access the SwitchCell and TextCell cells of the TableView and ListView controls by using native properties:

  JavaScript, JScript

  Python

  VBScript

  DelphiScript

  C++Script, C#Script

  Copy Code

  JavaScript, JScript

  function Test()
  {
    // Get the TableView control
    var tableView = Mobile.Device("iPhone").Process("TestedApp").XFObject("NavigationPage", "").XFObject("TableViews", "TableViews").XFObject("Grid", "").XFObject("TableView", "");
    // Enable the SwitchCell item of the TableView control
    tableView.Root.Item(1).Item(0).On = true;
    // Change the text of the TextCell item of the TableView control
    tableView.Root.Item(2).Item(0).Text = "NewCell";

    // Get the ListView control
    var listView = Mobile.Device("iPhone").Process("TestedApp").XFObject("NavigationPage", "").XFObject("ListViews", "ListViews").XFObject("Grid", "").XFObject("ListView", "");
    // Disable the SwitchCell item of the ListView control
    listView.TemplatedItems.Item(0).On = false;
    // Change the text of the TextCell item of the ListView control
    listView.TemplatedItems.Item(1).Text = "NewCell";
  }

  Python

  def Test():
    # Get the TableView control
    tableView = Mobile.Device("iPhone").Process("TestedApp").XFObject("NavigationPage", "").XFObject("TableViews", "TableViews").XFObject("Grid", "").XFObject("TableView", "")
    # Enable the SwitchCell item of the TableView control
    tableView.Root.Item[1].Item[0].On = True
    # Change the text of the TextCell item of the TableView control
    tableView.Root.Item[2].Item[0].Text = "NewCell"

    # Get the ListView control
    listView = Mobile.Device("iPhone").Process("TestedApp").XFObject("NavigationPage", "").XFObject("ListViews", "ListViews").XFObject("Grid", "").XFObject("ListView", "")
    # Disable the SwitchCell item of the ListView control
    listView.TemplatedItems.Item[0].On = False
    # Change the text of the TextCell item of the ListView control
    listView.TemplatedItems.Item[1].Text = "NewCell"

  VBScript

  Sub Test
    Dim tableView, listView
    ' Get the TableView control
    Set tableView = Mobile.Device("iPhone").Process("TestedApp").XFObject("NavigationPage", "").XFObject("TableViews", "TableViews").XFObject("Grid", "").XFObject("TableView", "")
    ' Enable the SwitchCell item of the TableView control
    tableView.Root.Item(1).Item(0).On = True
    ' Change the text of the TextCell item of the TableView control
    tableView.Root.Item(2).Item(0).Text = "NewCell"

    ' Get the ListView control
    Set listView = Mobile.Device("iPhone").Process("TestedApp").XFObject("NavigationPage", "").XFObject("ListViews", "ListViews").XFObject("Grid", "").XFObject("ListView", "")
    ' Disable the SwitchCell item of the ListView control
    listView.TemplatedItems.Item(0).On = False
    ' Change the text of the TextCell item of the ListView control
    listView.TemplatedItems.Item(1).Text = "NewCell"
  End Sub

  DelphiScript

  procedure Test;
  var tableView, listView;
  begin
    // Get the TableView control
    tableView := Mobile.Device('iPhone').Process('TestedApp').XFObject('NavigationPage', '').XFObject('TableViews', 'TableViews').XFObject('Grid', '').XFObject('TableView', '');
    // Enable the SwitchCell item of the TableView control
    tableView.Root.Item(1).Item(0).On := true;
    // Change the text of the TextCell item of the TableView control
    tableView.Root.Item(2).Item(0).Text := 'NewCell';

    // Get the ListView control
    listView := Mobile.Device('iPhone').Process('TestedApp').XFObject('NavigationPage', '').XFObject('ListViews', 'ListViews').XFObject('Grid', '').XFObject('ListView', '');
    // Disable the SwitchCell item of the ListView control
    listView.TemplatedItems.Item(0).On := false;
    // Change the text of the TextCell item of the ListView control
    listView.TemplatedItems.Item(1).Text := 'NewCell';
  end;

  C++Script, C#Script

  function Test()
  {
    // Get the TableView control
     var tableView = Mobile["Device"]("iPhone")["Process"]("TestedApp")["XFObject"]("NavigationPage", "")[XFObject]("TableViews", "TableViews")[XFObject]("Grid", "")["XFObject"]("TableView", "");
    // Enable the SwitchCell item of the TableView control
    tableView["Root"]()["Item"](1)["Item"](0)["On"]() = true;
    // Change the text of the TextCell item of the TableView control
    tableView["Root"]()["Item"](2)["Item"](0)["Text"]() = "NewCell";

    // Get the ListView control
     var listView = Mobile["Device"]("iPhone")["Process"]("TestedApp")["XFObject"]("NavigationPage", "")XFObject("ListViews", "ListViews")[XFObject]("Grid", "")["XFObject"]("ListView", "");
    // Disable the SwitchCell item of the ListView control
    listView["TemplatedItems"]()["Item"](0)["On"]() = false;
    // CChange the text of the TextCell item of the ListView control
    listView["TemplatedItems"]()["Item"](1)["Text"]() = "NewCell";
  }
• Now, you can access ListView items only by their indexes. To access the items by their captions, use their native properties.

  The following example demonstrates how you can get item indexes of ListView controls via native ItemsSource property if you know the field captions of the corresponding items:

  JavaScript, JScript

  Python

  VBScript

  DelphiScript

  C++Script, C#Script

  Copy Code

  JavaScript, JScript

  function Test()
   {
     var customerName = "Samuel Clemens";
     // Get the ListView control
     var listView = Mobile.Device("HTC One S").Process("Orders.Orders").XFObject("MainPage", "").XFObject("NavigationPage", "Orders").XFObject("OrdersPage", "Orders Sample").XFObject("ScrollView", "").XFObject("Grid", "").XFObject("ItemsListView");
     //Post the index of the ListView item that has the Samuel Clemens value in the castomerName field
     Log.Message(FindItem(listView, customerName));
   }

  function FindItem(listView, customerName)
   {
     for (var i = 0; i < listView.ItemsSource.Count; ++i)
       if (listView.ItemsSource.Item(i).CustomerName == customerName)
         return i;
     return -1;
   }

  Python

  def Test():
    customerName = "Samuel Clemens"
    # Get the ListView control
    listView = Mobile.Device("HTC One S").Process("Orders.Orders").XFObject("MainPage", "").XFObject("NavigationPage", "Orders").XFObject("OrdersPage", "Orders Sample").XFObject("ScrollView", "").XFObject("Grid", "").XFObject("ItemsListView")
    # Post the index of the ListView item that has the Samuel Clemens value in the castomerName field
    Log.Message(FindItem(listView, customerName))


  def FindItem(listView, customerName):
    for i in range (listView.ItemsSource.Count):
      if listView.ItemsSource.Item[i].CustomerName == customerName:
        return i
    return -1

  VBScript

  Sub Test
    Dim listView, customerName
    customerName = "Samuel Clemens"
    ' Get the ListView control
    Set listView = Mobile.Device("HTC One S").Process("Orders.Orders").XFObject("MainPage", "").XFObject("NavigationPage", "Orders").XFObject("OrdersPage", "Orders Sample").XFObject("ScrollView", "").XFObject("Grid", "").XFObject("ItemsListView")
    ' Post the index of the ListView item that has the Samuel Clemens value in the castomerName field
    Log.Message(FindItem(listView, customerName))
  End Sub

  Function FindItem(listView, customerName)
    Dim i, index
    index = -1
    For i = 0 To listView.ItemsSource.Count-1
      IF listView.ItemsSource.Item(i).CustomerName = customerName Then
        index = i
        Exit For
      End If
    Next
    FindItem = index
  End Function

  DelphiScript

  function FindItem(listView, customerName);
  var i;
  begin
     for i := 0 to listView.ItemsSource.Count - 1 do
     begin
      if listView.ItemsSource.Item[i].CustomerName = customerName then
      begin
        Result := i;
        exit;
      end;
     end;
    Result := -1;
  end;

  procedure Test;
  var listView, customerName;
  begin
     customerName := 'Samuel Clemens';
     // Get the ListView control
     listView := Mobile.Device('HTC One S').Process('Orders.Orders').XFObject('MainPage', '').XFObject('NavigationPage', 'Orders').XFObject('OrdersPage', 'Orders Sample').XFObject('ScrollView', '').XFObject('Grid', '').XFObject('ItemsListView');
     // Post the index of the ListView item that has the Samuel Clemens value in the castomerName field
     Log.Message(FindItem(listView, customerName));
  end;

  C++Script, C#Script

  function Test()
   {
     var customerName = "Samuel Clemens";
     // Get the ListView control
     var listView = Mobile["Device"]("HTC One S")["Process"]("Orders.Orders")["XFObject"]("MainPage", "")["XFObject"]("NavigationPage", "Orders")["XFObject"]("OrdersPage", "Orders Sample")["XFObject"]("ScrollView", "")["XFObject"]("Grid", "")["XFObject"]("ItemsListView");
     //Post the index of the ListView item that has the Samuel Clemens value in the castomerName field
     Log["Message"](FindItem(listView, customerName));
   }

  function FindItem(listView, customerName)
   {
     for (var i = 0; i < listView["ItemsSource"]["Count"]; ++i)
       if (listView["ItemsSource"]["Item"](i)["CustomerName"] == customerName)
         return i;
     return -1;
   }

• You may experience performance issues during test recording and playback on older iOS devices like iPhone 5S. As a workaround, we recommend that you use up-to-date iOS devices, if possible.

• Xamarin.Forms applications are regular Android or iOS applications. When testing them, you may face the same issues you face when testing regular Android and iOS apps.

  For instance, when running tests on iOS devices, TestComplete does not detect animation playback, and does not wait for the animation to complete. If the target control over which TestComplete is going to simulate user actions is not available until the animation completes, your test will fail. You may face this issue when testing Xamarin.Forms applications as well, for example, when navigating between pages of the NavigationPage control. To learn about possible workarounds, see the animation playback issue description for iOS.
