This topic provides a brief overview of testing Visual Basic applications with TestComplete.

General Notes on Visual Basic Applications Testing

With TestComplete you can easily test Visual Basic applications. You can perform any kind of testing – unit, functional, regression and so on. The easiest way to create a test for your application is to record a keyword test or a script routine. When playing back your test, TestComplete repeats all the actions you performed during recording. If needed, you can also extend the recorded test manually using a number of specific features provided by TestComplete.

TestComplete supports applications created with Visual Basic 6.0. For information on how to test Visual Basic .NET applications, see the topics of the Testing .NET Applications section.

Creating and Recording Tests for Visual Basic Applications

With TestComplete, you can record and play back user actions in Visual Basic applications, or you can create tests manually from scratch. Usually, it is easier to record the test first and then modify and enhance the recorded test.

When you record a test, you interact with the tested Visual Basic application as an end-user would: navigate through the application’s screens, fill out forms and so on. TestComplete captures all actions you perform in the application and adds them to the test.

A test consists of a sequence of operations that define various interactions with objects in the tested application. For example, in the sample test below you can see that item selection from a combo box is represented by the ClickItem operation, text input into text boxes - by the SetText operation, and so on.

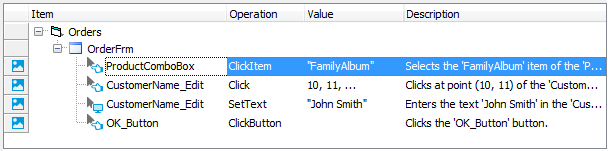

A sample keyword test recorded against a Visual Basic application
A sample keyword test recorded against a Visual Basic application

JavaScript, JScript

function Test1()
{
  var control;
  var control2;
  control = Aliases.Orders.OrderFrm1;
  control.ProductComboBox.ClickItem("FamilyAlbum");
  control2 = control.CustomerName_Edit;
  control2.Click(10, 11);
  control2.SetText("John Smith");
  control.OK_Button.ClickButton();
}

Python

def Test1():
  control = Aliases.Orders.OrderFrm1;
  control.ProductComboBox.ClickItem("FamilyAlbum");
  control2 = control.CustomerName_Edit;
  control2.Click(10, 11);
  control2.SetText("John Smith");
  control.OK_Button.ClickButton();

VBScript

Sub Test1
  Dim control
  Dim control2
  Set control = Aliases.Orders.OrderFrm
  Call control.ProductComboBox.ClickItem("FamilyAlbum")
  Set control2 = control.CustomerName_Edit
  Call control2.Click(10, 11)
  Call control2.SetText("John Smith")
  control.OK_Button.ClickButton
End Sub

DelphiScript

procedure Test1;
  var control : OleVariant;
  var control2 : OleVariant;
begin
  control := Aliases.Orders.OrderFrm1;
  control.ProductComboBox.ClickItem('FamilyAlbum');
  control2 := control.CustomerName_Edit;
  control2.Click(10, 11);
  control2.SetText('John Smith');
  control.OK_Button.ClickButton;
end;

C++Script, C#Script

function Test1()
{
  var control;
  var control2;
  control = Aliases["Orders"]["OrderFrm1"];
  control["ProductComboBox"]["ClickItem"]("FamilyAlbum");
  control2 = control["CustomerName_Edit"];
  control2["Click"](10, 11);
  control2["SetText"]("John Smith");
  control["OK_Button"]["ClickButton"]();
}

The recorded tests can be modified and enhanced in a number of ways to create more flexible and efficient tests. For example, you can:

  • Add new operations, reorder operations and modify their parameters.

  • Delete or disable unneeded operations (for example, superfluous recorded operations).

  • Insert checkpoints for verifying objects and values in the tested application.

  • Create data-driven tests that run multiple test iterations using different sets of data.

Refer to the following topics to learn more about creating and enhancing tests:

Task See topic…
Creating tests using recording Recording Tests
Creating tests manually Keyword Testing and Scripting
Simulating user actions Working With Application Objects and Controls
Running tests Running Tests
Launching applications automatically at the beginning of the test run Adding Tested Applications and
Running Tested Applications
Creating checkpoints for verifying application behavior and state Checkpoints
Running multiple test iterations using data from an external file Data-Driven Testing

About Test Types

There are two major test formats in TestComplete:

  • Keyword tests - visually configured tests with grid-based editing interface. Best suited for novice users and those without programming knowledge.

  • Scripts - code written in one of the supported scripting languages. May be better suited for advanced users.

You select the test type when creating a test and cannot change it later. However, you can mix keyword tests and scripts within the same test project and call them from each other.

TestComplete also includes additional test types, such as low-level procedures, unit tests, distributed tests and so on. You can use them to address specific testing needs. However, most automation is typically done using keyword tests and scripts.

About Visual Basic Object Identification and Name Mapping

Each object in an application has a number of properties, such as its location, text, type and so on. Some object properties are persistent and unchanging, and therefore can be used to locate objects in applications and differentiate among various objects.

When you record a test, TestComplete captures all windows and controls that you interacted with during the recording session and adds them to the Name Mapping project item (also known as the object repository or GUI map). For each captured object, TestComplete does the following:

  • Selects a set of properties and values that uniquely identify the object in the application and saves them to Name Mapping as the object identification criteria. These properties will be used for locating the object during subsequent test recording, editing and run sessions.

  • Generates an alias (name) that will be used to reference this object in tests. By default, TestComplete generates aliases based on object names defined in the application by developers.

  • Automatically captures and adds images of the mapped objects to the Name Mapping repository. This helps you understand which window or control one or another mapped object matches.

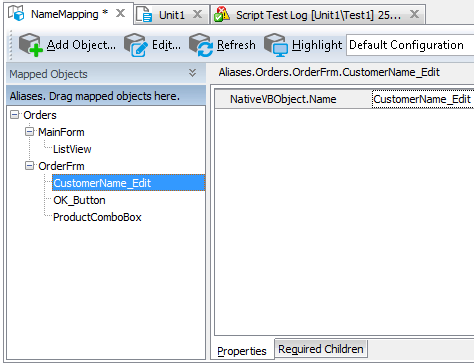

The following image shows sample Name Mapping for a Visual Basic application:

Sample Name Mapping for a Visual Basic application

Here, the CustomerName_Edit object is identified only by one property - NativeVBObject.Name. This property specifies the object name as it is defined by the application developers in the application’s source code. However, Visual Basic application objects can also be located by other properties, such as their class name, text and so on -- whatever best identifies a specific object.

If needed, you can modify the default Name Mapping generated by TestComplete. For example, you can:

For more information, see Name Mapping.

Keep in mind that the object hierarchy in Name Mapping mirrors the object hierarchy in the tested application. When locating an object, TestComplete takes into account its entire parent hierarchy. If any object in the parent hierarchy cannot be found using the specified property values, the target object cannot be located as well. That is why it is important to select unique and unchanging properties for object identification.

About Support for Visual Basic Controls

TestComplete recognizes individual controls of Visual Basic applications and lets you interact with them both at design time and during test recording or playback. It also simplifies testing of Visual Basic applications' user interface, since it includes special features used to test the most frequently used Visual Basic controls.

For detailed information on support for Visual Basic application controls, see Support for Visual Basic Applications' Controls.

Using Native Visual Basic Methods and Properties in Testing

TestComplete makes visual objects of Visual Basic applications available for testing, that is, you can recognize these objects, interact with them and work with native properties and methods of internal Visual Basic objects.

By default, TestComplete enables you to access public internal properties, events and methods of Visual Basic applications.

Note: Note that, some native properties and methods of Visual Basic objects are unavailable to TestComplete. For more information, see Object Properties, Fields and Methods That Are Unavailable to TestComplete.

For detailed information on how to address exposed properties and methods from your tests, see Accessing Native Properties and Methods of Visual Basic Objects and Addressing Objects in Visual Basic Applications.

Viewing Object Properties and Methods

To see what operations (methods) are available to objects in your tested Visual Basic application, as well as the object properties and their values, you can use the Object Browser or Object Spy. The available properties and methods include those provided by TestComplete, as well as native object properties and methods defined by the developers in the application’s source code.

You can view object properties and methods both at design time and at runtime when the test is paused.

For more information on using the Object Browser, see Object Browser and Exploring Applications.
