Support for Web Components - Requirements

Applies to TestComplete 15.70, last modified on December 17, 2024

The information in this topic applies to web tests that locate web objects by using internal identification properties provided by TestComplete and run in local environments.

To access web elements implemented with Web Components technologies (for instance, elements residing in shadow trees or custom elements) from your tests, the following requirements must be met:

  • Your TestComplete version must be 12.70 or later.

  • You must have an active license for the TestComplete Web module.

  • The following plugins must be enabled in TestComplete:

    • Web Testing

    • Chrome Support

    • Firefox Support

    These plugins are installed and enabled automatically when you install TestComplete. You may want to check these plugins’ status in the File > Install Extensions dialog box if you experience issues with Web Components support.

  • Your TestComplete test project must be configured to support Web Components (see below).

  • Shadow DOM trees in your tested web application must be open. TestComplete cannot access elements residing in closed shadow trees.

Supported Browsers

Only the following web browsers provide full support for Web Components:

  • Google Chrome

  • Mozilla Firefox ver. 63 and later

You can use only these web browsers to create and run tests for web applications that use Web Components.

Test Project Configuration

To create tests for web applications that use Web Components, configure your TestComplete test project in the following way:

Projects you create in TestComplete version 14.0 (or later) are configured to support Web Components by default. If you have projects created in earlier versions of TestComplete or if you have changed the default properties with which the projects are created, configure them to support Web Components manually.

  1. Open a TestComplete project in which you want to create tests for web applications using Web Components.

  2. From the TestComplete main menu, select Tools > Current Project Properties.

  3. In the tree on the left, select the Open Applications > Web Testing > General category.

  4. Make sure that:

    • The Tree model is set to Tree (default value).

    • The Use legacy web testing features check box is disabled.

    • The Enable support for Web Components check box is enabled.

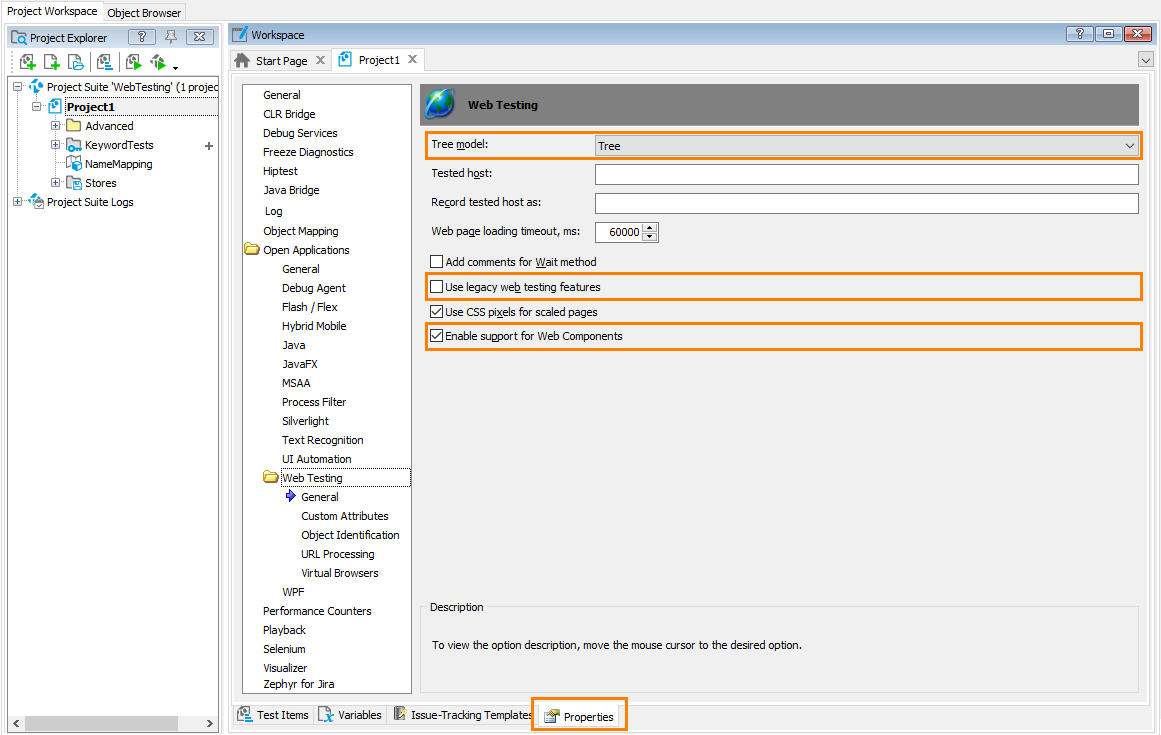

    Configure your project to support Web Components

    Click the image to enlarge it.

  5. Save the changes.

TestComplete versions prior to version 14.0 might recognize some custom web elements as TextNode objects (or other regular web elements). If you have tests created in earlier versions of TestComplete and working with custom web elements via TextNode objects, these tests will fail if you enable support for Web Components for them. See Tests Created in Earlier TestComplete Versions.
