Creating Tests for iOS Applications (Legacy)

Applies to TestComplete 15.70, last modified on December 17, 2024
The information below concerns legacy mobile tests that work with mobile devices connected to the local computer. For new mobile tests, we recommend using the newer cloud-compatible approach.

This topic provides general information on creating tests for iOS applications. It includes the following sections:

Requirements

To make your iOS application a tested one, you need to prepare it in a certain way: compile with the TestComplete Agent library and sign with the appropriate provisioning profile. If you use TestComplete to instrument the application, you will also need to use the developer certificate files. Also, you need to install the latest version of iTunes on your test computer. For complete information on preparatory actions, see Preparing Applications, Devices, and Test Computers for iOS Testing (Legacy).

If your application was prepared for testing with an earlier version of TestComplete, it will be unavailable to the current version of TestComplete. To enable TestComplete to access your application, recompile your application with the version of the TestComplete Agent library that is shipped with your current TestComplete version. See Preparing iOS Applications (Legacy).

General Information

In TestComplete, tests for iOS applications can be recorded or created manually as keyword tests and scripts. The easiest way to create a test is to record it and then modify the recorded test commands, but of course, you can create a test manually from scratch.

TestComplete can recognize individual controls in iOS applications and expose their methods and properties. It creates a hierarchy of test objects that reflects the hierarchy of controls in the tested application.

To simulate user actions like touches or text input on controls, you can use methods and properties that TestComplete provides for the controls. You can also use native members to perform certain actions which cannot be done with methods and properties provided by TestComplete. Access to internal controls, their methods and properties lets you create tests that will be easily ported between various iOS devices and that will be independent of the changes made to the control layout on the screen.

Test Steps

To create a test for an iOS application, follow these steps:

  1. Plan your test and think of the test steps to be simulated.

  2. Add your iOS application to the Tested Applications list of your project.

  3. Run your tested application on the device and connect TestComplete to the device.

  4. Explore the application under test in the Object Browser, find the needed test objects and determine methods and properties available for testing.

  5. Write a script statement or create a keyword-test operation simulating the desired action.

Some notes:

  • You can launch the tested application from the list of the tested applications. The application has to be signed with the provisioning profile of the developer type.

  • You can use property or region checkpoints to verify results of test actions.

  • Recording and playback of multi-touch events (gestures) is not currently supported.

Recording Test Commands

To record a test for an iOS, you need to prepare the application and device for testing, open the Mobile Screen window, launch the application on the device, start the recording and work with your tested application through the Mobile Screen window. For complete information on each step, see Recording iOS Tests (Legacy).

Creating Test Commands Manually

1. Initial Steps

  1. Prepare your application and test computer for testing. See Preparing Applications, Devices, and Test Computers for iOS Testing (Legacy).

  2. Connect your iOS device to the test machine with a USB cable.

  3. Deploy the application to the device and start it there. You can automate these steps. See Deploying iOS Applications to Devices (Legacy) and Starting Tested iOS Applications (Legacy).

  4. To check whether the application and test machine have been prepared correctly, open the Object Browser panel (if the panel is hidden, select View | Object Browser from the TestComplete main menu to display the panel). If the application and machine were prepared correctly, you will see the device, application and hierarchy of application objects in the Object Browser under the Mobile node.

2. Learning Object Names and Available Methods and Properties

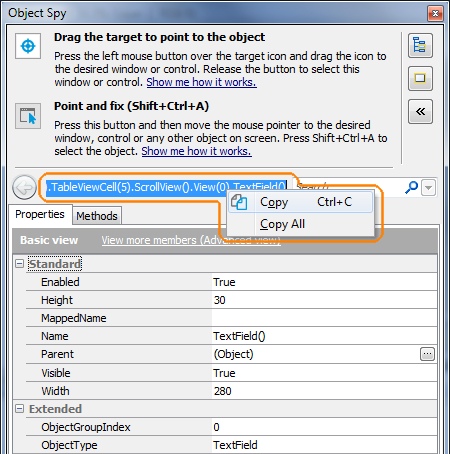

If the application was prepared for testing, you can see the hierarchy of test objects and their methods and properties in the Object Browser panel and in the Object Spy window. You can choose and explore an object for testing in any of the following ways:

Selecting an Object on the Mobile Screen

View Instructions

Tip: When exploring the available methods and properties, pay attention to the Extended category on the Properties page and the Standard and Actions categories on the Methods page. They contain specific properties and methods that TestComplete provides for controls of various types. These methods and properties can significantly simplify simulating user actions on controls.

Native methods and properties are available in the iOS category.

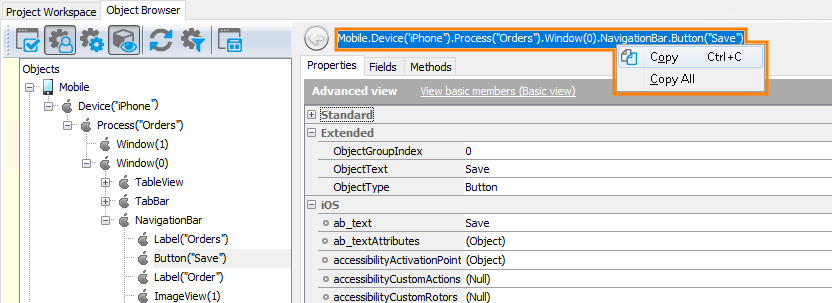

Selecting an Object in the Object Browser

View Instructions

For information on how TestComplete names objects of tested iOS applications, see Addressing Objects in iOS Applications (Legacy).

3. Mapping iOS Object Names (Recommendation)

The default object names may have the following shortcomings:

  • Quite often, they are long. For instance, if your application uses lots of View controls for aligning controls on the screen, the full object name will include all these View controls.

  • It may be difficult to understand to which object this or that name corresponds, that is, the object name can be meaningless.

To avoid such situations, it is recommended that you assign custom names to controls. This is called name mapping. You can choose meaningful names and skip layout containers. You can do this for all controls in your application (or for all controls needed for testing) before creating tests. This way the test creating process can go faster and easier.

Here is a brief description of how you can map object names:

1. Select an object and map its name.

You can do this in the following ways:

  • Map an object from the Object Browser

    If you are exploring your application in the Object Browser panel:

    • Right-click the desired object in the object tree and choose Map Object from the context menu.

    • Follow the instructions of the subsequent dialog.

– or –

  • Map an object from the Mobile Screen

    • Click Show Mobile Screen to invoke the Mobile Screen window.

    • Click Map Object From Screen from the TestComplete Tools toolbar.

    • Use the subsequent wizard to choose the object from the Mobile Screen. Follow the wizard instructions on other pages to complete mapping.

2. Obtain the Created Alias.

You can see the mapped names in the Name Mapping editor. To display it, switch to the Project Explorer panel and double-click the <Your Project>\Name Mapping item there.

The mapping names are displayed in the Aliases and Mapping Objects trees (the latter is collapsed by default). The hierarchy of items in the Mapping Objects tree reflects the hierarchy you see in the Object Browser. This panel is needed to trace the parent-child object relationships and explore the mapping settings. The Aliases tree reflects the simplified object hierarchy where some non-significant objects are skipped. Although you can use both names from the Mapping Objects and Aliases trees in your tests, we recommend using Aliases as it is simpler.

To choose an alias:

  • Select the desired item in the Aliases tree.

  • Select the full object name at the top of the Name Mapping editor and copy it to the clipboard:

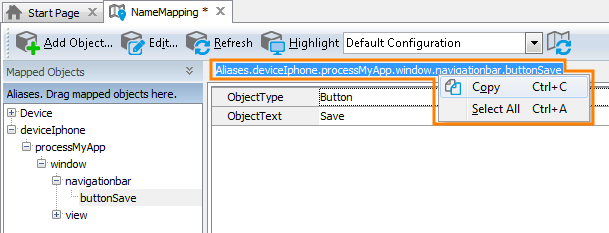

    iOS testing: Copying an alias to the clipboard

Note that you can move the alias in the tree to adjust the object hierarchy at your desire. For instance, you can make some controls direct children of the process item.

For complete information on mapping object names, see Name Mapping.

4. Creating a Test Command

Writing Script Code

After you obtain the name of the desired object and learn the property or method name, you can write a test command:

  1. Open your script unit.

  2. Paste the object name you copied earlier to the Object Browser panel, Object Spy window or Name Mapping editor, and then type code for calling a method or for working with the desired property or field.

Creating Keyword-Test Operations

After you obtain the name of the desired object and explore available methods and properties, you can create keyword-test operations:

  1. Open your keyword test for editing. To do this, simply double-click the test in the Project Explorer panel.

  2. On the left of the Keyword Test editor, expand the Test Actions category and find the On-Screen Action operation there.

  3. Drag the On-Screen Action operation from the operation palette and drop it into the desired place in your test.

  4. After you drop it, TestComplete will display a wizard asking you to specify the desired test object. Paste the object name that you copied to the clipboard earlier in the Object Browser panel, Object Spy window or in the Name Mapping editor. Alternatively, you can open the Mobile Screen window and choose the desired object from it, or if the object name has been mapped, select the desired alias.

  5. Use the subsequent wizard pages to choose the method or property to be called and specify the needed parameters.

5. Select a Device at the Beginning of the Test

If you are going to run your test on multiple devices (that is, if your test addresses the device without parameters), remember to insert device selection commands at the beginning of the test:

For complete information on creating tests that will run on various devices, see Running Tests on Multiple Devices (Legacy).

What Methods and Properties to Use for Simulating User Actions

To simulate user actions, we recommend using methods and properties which TestComplete provides for test objects of various types. You can find these properties and methods in the Object Browser panel or in the Object Spy window: the properties are on the Properties page under the Extended node, the methods are on the Methods page under the Standard and Actions nodes.

For information on simulating frequently used operations, see Simulating User Actions on iOS Applications (Legacy).

Checking Results of Test Actions

You can verify test action results in the following ways:

  • To determine the object state, you can use properties, fields and methods of the test object. You can use methods and properties provided by TestComplete and “native” methods, properties and fields of the object.

    Once you get the desired value, you can compare it against the expected value. To perform comparison, you can use the if... then script statement or the If... Then keyword-test operation, or you can use a property checkpoint.

  • To compare the image of some object with some baseline image, you can create and use a region checkpoint. When creating the checkpoint, call the Mobile Screen window and specify the desired object of your iOS application in this window.

    You can also use the object’s Picture method to obtain the image of the entire object or some part of it. You can then save this image to the test log or compare it in scripts or keyword tests with some baseline image. See Posting Images to the Log and Creating Region Checkpoints.
