View Images of Mapped Objects

Applies to TestComplete 15.0, last modified on October 14, 2021

To identify a mapped object in an application, you can view its image captured from screen:

  1. Select the needed object in the Name Mapping repository.

  2. View its image in the lowermost panel of the editor:

    View the image of the mapped object

– or –

  1. Make sure that your tested application is running and that the window containing the needed object is opened.

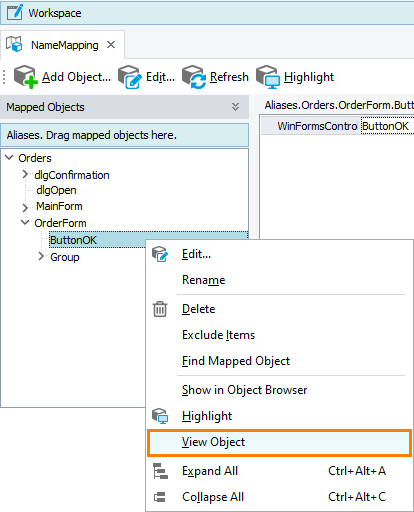

  2. Right-click the object in the Name Mapping repository and select View Object from the context menu:

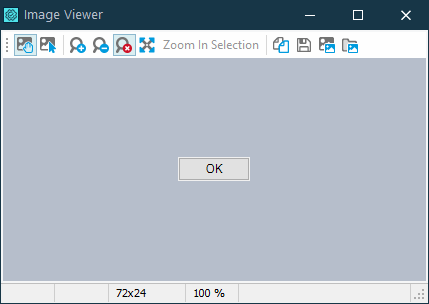

  3. TestComplete will capture an image of the selected object and display it in the Image Viewer:

    An object image in the Image Viewer

Note: If the operating system where TestComplete is running uses the Aero theme and the Disable DWM before capturing image project property is enabled, TestComplete captures window screenshots without the window border and title. See Capturing Images When the Aero UI Theme Is Active.
