Generate Run Code for BitBar Dialog

Applies to TestComplete 15.62, last modified on March 19, 2024

Use the Generate Run Code dialog to generate script code that will connect to either a mobile device running in the BitBar device cloud or to a device managed by a private Appium server (on your local computer or on a remote computer in your local network) and will open a testing session on this device.

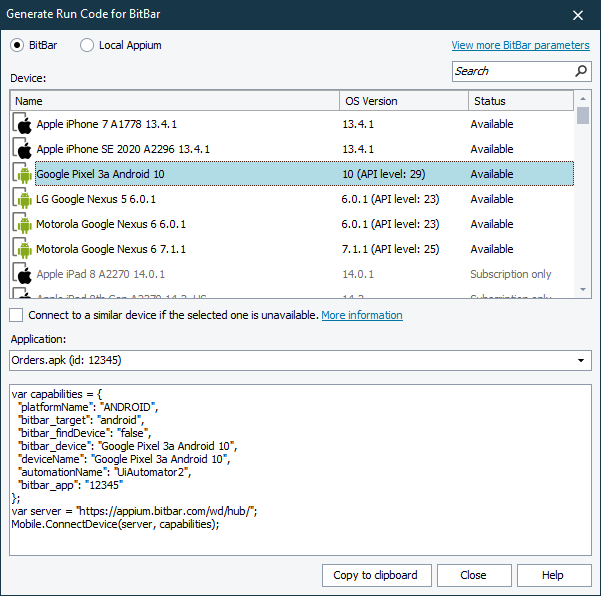

Generate run code for BitBar dialog

Click the image to enlarge it.

To call the dialog

Click on the Code Editor toolbar in TestComplete.

Requirements

  • An active license for TestComplete Mobile Module.

  • The Appium Support plugin must be enabled in TestComplete. You can check the plugin state in the File > Install Extensions dialog in TestComplete. You can find the plugin in the Mobile group.

  • Access to the server that manages your mobile devices. It can be one of the following:

    • A mobile device cloud provided as a service by BitBar.

      If you do not have a BitBar account, you can sign up for a free trial on the BitBar website:

      bitbar.com/signup

      To access the cloud from TestComplete tests, use the API key assigned to your BitBar account. See the Prerequisites section.

    – or –

    • A private server managed by the Appium framework. It can run on your current computer or on a remote computer in your local network. The supported Appium version is 1.18.2.

      To learn how to install and configure one, please see Set up Appium Server.

      Note: Selenium, Selendroid, and other frameworks are not supported.

      For iOS testing: the XCUITest driver must be installed on your Appium server. See Intro to Appium Drivers.

      For Android testing: the UIAutomator2 driver must be installed on your Appium server. See How to Install the UiAutomator2 Driver.

      Note: Other automation drivers for iOS and Android are not supported.

Enter BitBar API Key

If you use BitBar and there is no BitBar API key specified in the current TestComplete project, enter the API key you will use to run tests and click Apply.

Learn how to get the API Key

If you use a private mobile cloud, click Local Appium.

Generate run code

For BitBar

1. Configure the code
  1. Select the mobile device and a tested application for which you want to open a testing session:

    • You can select devices that have any status in the Status column. However, the selected device must be Available when the test run starts.

    • If the selected device is not available, TestComplete will not be able to connect to it. To command TestComplete to search for a replacement device, select the Connect to another device when the selected one is not available check box. On the Device Cloud > Mobile page of your project, you can set the search criteria for the replacement devices.

    • In the Application drop-down list box, select a mobile application for which you want to open a testing session. The application file must be either stored in the BitBar Files Library or added to the Tested Applications of the current TestComplete project. In the latter case, click Upload to BitBar to upload the application file to the BitBar Files Library and then select it in the list.

      For iOS only: To be able to launch and stop the tested application from tests or by using the Mobile Device Screen window of TestComplete, specify the bundle ID of the application when connecting to the device. It is the bundle ID that was used to compile the specified .ipa file. Add the bundleId capability to the list of desired capabilities on the View more BitBar parameters > Custom Parameters tab.

  2. To get more advanced options, click View more BitBar parameters:

    • On the Parameters tab, you can filter the device list by the device type, the version of the operating system running on the devices, their screen resolution, and their location.

    • By default, when a device is disconnected, the testing session on it is closed, and the device is restored to its initial state. Until the device is restored, it will remain unavailable. To keep the session alive to be able to reconnect to it, select the Keep the device available for quick reconnection check box. The session will be available for reconnection for up to 60 seconds.

    • If needed, on the Custom parameters tab, you can specify additional capabilities to be used for the testing session. Specify the capabilities in the JSON format. For example:

      JSON

      {
        "bitbar_project": "Automated tests",
        "bitbar_description": "Testing the Orders app"
      }

      The JSON code will be validated as you are typing it.

      Note: The capabilities you specify on the Custom capabilities tab can overwrite values specified on the Parameters tab.

      For the list of available capabilities, see the BitBar Documentation - Desired Capabilities.

2. Copy the generated code

The dialog will generate the code based on the parameters you specify and will show the generated code in the lower part of the dialog. You can select and copy the code to the clipboard manually, or you can click Copy to clipboard. The dialog will copy the entire code to the clipboard and then close. Insert the code from the clipboard to the needed place in your code.

Click Close to close the dialog without copying anything.

For local Appium

1. Configure the code
  1. In the Server URL text box, enter the URL address of your Appium server. For Appium 2.x, the format of the URL should be http://localhost:4723 and for Appium 1.x the format should be http://localhost:4723/wd/hub.

  2. In the Application Path text editor, specify the full path to the application that you want to install on the target mobile device and from which you want to open a testing session. If your application is added to the list of tested applications in your TestComplete project, you can click the down-arrow button and select the application path from the drop-down list. You can also type the path manually, or you can click the ellipsis button and browse for the needed application file.

    Specify the application path relatively to the Appium server location.

    You can also specify the application path using the app capability in the Parameters editor. The app capability value will override the Application Path value.

  3. In the Parameters editor, enter the capabilities that describe a testing session you want to open, in the JSON format. The dialog will validate the JSON code as you are typing.

    View required capabilities

    For information on all available capabilities, see Appium Desired Capabilities.

2. Copy the generated code

The dialog will generate the code based on the server URL and capabilities you specify and will show the generated code in the lower part of the dialog.

You can select and copy the code to the clipboard manually, or you can click Copy to clipboard. The dialog will copy the entire code to the clipboard and then close. Insert the code from the clipboard to the needed place in your code.

Click Close to close the dialog without copying anything.
