File Comparison Results Log

Applies to TestComplete 15.0, last modified on October 14, 2021

Your script and keyword tests can compare text and PDF files. The File Comparison Results page of the test log displays the file comparison results:

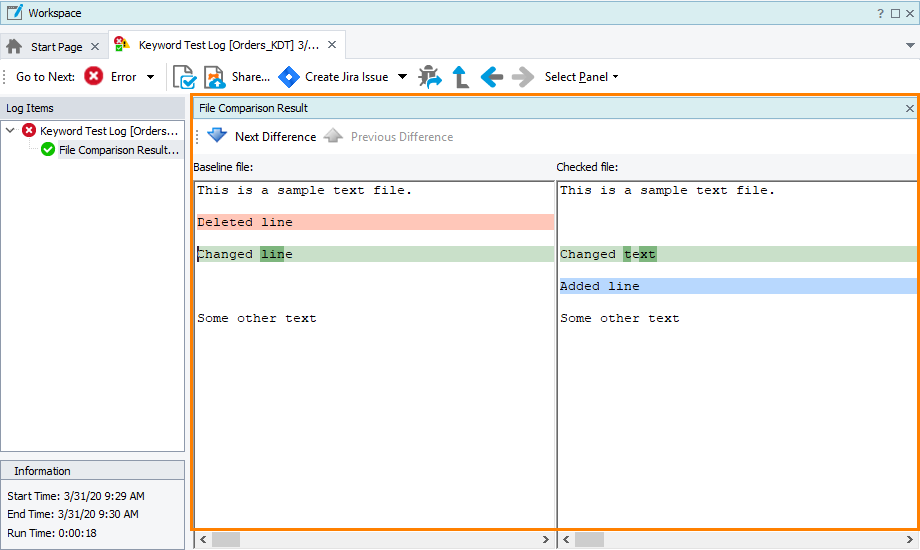

The File Comparison Results page

Click the image to enlarge it.

The baseline file is on the left (that file is stored in the Stores > Files collection of your project). The file to be compared is on the right.

The page highlights the differences between the files:

 Transparent  The lines are equal.
 Light green  The lines contain characters that are different.
 Dark green   The highlighted characters are different.
 Light coral  The line is absent from the compared file.
 Light blue   The line is absent from the baseline file.

To navigate between the differences, click Previous Difference or Next Difference on the page toolbar.

Page availability

The test engine creates this page –
