Call Stack Panel

Applies to TestComplete 15.62, last modified on March 19, 2024

During test debugging, the Call Stack panel lists the sequence of script routine calls and keyword tests that led to the current execution point.

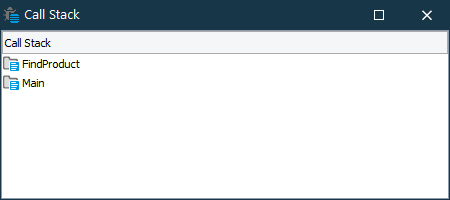

The following image displays an overall view of the Call Stack panel:

Call Stack Panel
Note: This topic describes the Call Stack panel available only during test debugging. For information on the Call Stack panel of the test log that is available after the test run is over, see Generic Test Log - Call Stack Panel.

Displaying the Panel

By default, TestComplete shows this panel automatically during test debugging. If the panel is hidden, you can do one of the following steps to display it:

  • Click the button on the Debug toolbar.

  • Press the View > Debug > Call Stack shortcut. The default shortcut depends on the keyboard mapping scheme chosen in the Customize Keyboard dialog. For the Visual Studio Emulation scheme, it is Alt+7. For the Borland Classic and Default schemes, it is Ctrl+Alt+S. You can also change the assigned shortcut via the Customize Keyboard dialog.

  • Select View > Debug > Call Stack from the main menu.

  • Choose View > Select Panel from the TestComplete main menu and then choose Call Stack from the ensuing Select Panel dialog.

Information on the Panel

Each row in the panel corresponds to a script call or to a keyword test run. The topmost row corresponds to the last called routine or the last executed test, and the bottommost row corresponds to the earliest call or test (that is, the routine or keyword test from which the test run started). Each entry includes the name of the routine or keyword test and the parameter values passed to it.

TestComplete allows you to customize the layout of any of its panels to better meet your needs. For example, you can change the panel’s size, docking and position, hide the panel or make it visible. To learn how to customize the TestComplete interface, see Customizing TestComplete.

Working with the Panel

To jump to a source code

To jump to a script routine or a keyword test that is shown in the Call Stack panel, do any of the following:

  • Right-click the row that corresponds to the desired routine or test in the Call Stack panel, and then select Show Source from the context menu.

  • Select the desired row in the Call Stack panel and press Enter.

  • Double-click the row.

TestComplete will display the script routine code (or the contents of the keyword test), and the cursor will be on the last executed line of the chosen script routine (or on the last executed operation of the test).

To add breakpoints

To add a breakpoint to a script routine or a keyword test which is shown in the Call Stack panel, do the following:

  • Right-click the row that corresponds to the desired routine or test in the Call Stack panel and select Insert Breakpoint from the context menu.

TestComplete will set a breakpoint on the line (or operation) that follows the last executed line of the selected script routine (or follows the last executed operation of the selected test).

To run tests to a specified point

To continue the test execution until it reaches the specified point:

  • Right-click the row that corresponds to the desired script routine or test in the Call Stack panel and select Run to Cursor from the context menu.

TestComplete will continue executing the test until it reaches the line (or operation) that follows the last executed line of the selected script routine (or the last executed operation of the selected test).

See Also

Debugging Tests - Overview
Using Breakpoints
Running Tests
Running to the Cursor
