Sending and Receiving HTTP Requests From Keyword Tests

Sending Requests

Working With Responses

To send requests in keyword tests, TestComplete provides you with the Send Request operation. To use it, follow the steps below:

1. Open your keyword test for editing.

2. Drag the Send Request operation from the Data Access category of the Operations panel to your test.

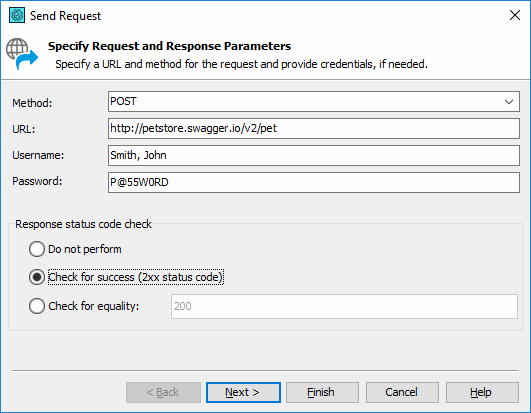

3. In the opened dialog, specify the following parameters:

   • In the Method drop-down list, select one of the available request types.

   • Specify an absolute URL path to the server or resource to which you want to send the request.

   • If the target web server uses the Basic authentication, specify the user credentials in the Username and Password edit boxes.

   • Specify how the operation will check the response status code:

     • Do not perform – The operation will not check the response status code.

     • Check for success – The operation will check whether the response status code means that the request has been sent successfully (that is, the status code is from 200 to 206).

     • Check for equality – The operation will check whether the response status code equals the specified value.



4. Click Next to proceed.

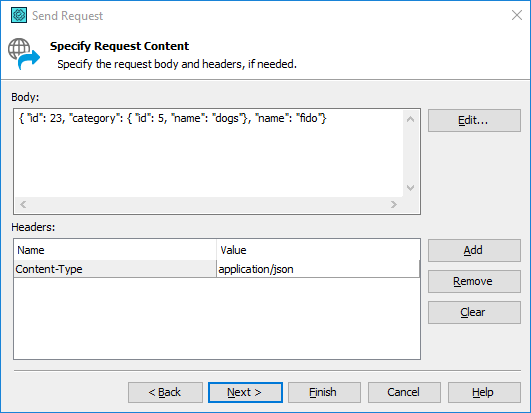

5. Specify request content.

   • Body – To specify the body content, either enter it in the edit box, or click Edit and define it in the resulting Edit Value dialog.

   • Headers – In this table, you can add headers to your request.

     Click Add to add a new header and enter its name and value in the Name and Value columns.

     Click Remove to delete the header. Click Clear to remove all the headers.



6. Click Next.

7. On the opened page, you can review added parameters and change them if needed.

8. Click Finish to apply the changes.

   TestComplete will add the Send Request operation to your test.

   Note:

   If you need to set timeout values for sending and receiving requests, write a script and call it from your keyword test by using the Run Code Snippet, Run Script Routine or Run Test operations.

Working With Responses

The Send Request operation returns a response from a web server. You can use the response later in your test. For example, you can save it to a file by using the Save to File operation.

To save the response to a file

To save the response to a fileTo save the response to a file

1. Add the Save to File operation after the Send Request operation.

2. Specify the path to which you want to save the file and the required encoding.

3. Click the ellipsis button next to the Content field.

4. In the Edit Value dialog, select the Last Operation Result mode.

The server response will be saved to the specified file.

If TestComplete sends a request successfully, and the server returns an OK response, the operation will post information about the request and the response body and header to the test log. Otherwise, the operation will post an error message to the test log.

If a request fails due to the status code error, the information about it will also be posted to the test log.

Most common status codes

Most common status codesMost common status codes

These status codes identify the most common statuses, and may be not used by your server.

Name	Value (Status Code)	Description
Continue	100	The Continue status indicates the server has received the request headers and the client should send the request body.
SwitchingProtocols	101	The Switching Protocols status indicates the requester has asked the server to switch protocols and the server has agreed to do that.
OK	200	The OK status indicates the request has been sent successfully, and the server has provided all the necessary information.
Created	201	The Created status indicates the request has been fulfilled, and the new resource appeared on the server.
Accepted	202	The Accepted status indicates the request has been taken for processing, but the processing has not been completed.
NonAuthoritativeInformation	203	The Non-Authoritative Information status indicates the server is a proxy and providing the modified information from the origin server.
NoContent	204	The No Content status indicates the server has successfully processed the request but has not provided any content.
ResetContent	205	The Reset Content status indicates the server has successfully processed the request, but is not returning any content.
PartialContent	206	The Partial Content status indicates the server is delivering only a part of the resource in accordance with a range header that the client has sent.
MultipleChoices	300	The Multiple Choices status indicates there are multiple options for the resource from which the client can choose.
MovedPermanently	301	The Moved Permanently status indicates this and all future request should be directed to the given URI.
Found	302	The Found status indicates the request should be redirected to another location. The server sends the new location in the location header.
SeeOther	303	The See Other status indicates the response to the request can be found under another URI using a GET method.
NotModified	304	The Not Modified status indicates the resource has not been modified since the version specified by the request headers If-Modified-Since or If-Non-Match.
UseProxy	305	The Use Proxy status indicates the requested resource is available only through a proxy, and the service has provided the proxy address in the response.
Unused	306	Unused belongs to the Switch Proxy status, which is no longer used, but originally required subsequent requests to use the specified proxy.
TemporaryRedirect	307	The Temporary Redirect status indicates the current request should be repeated with another URI, but future requests should use the original URI.
BadRequest	400	The Bad Request status indicates the request could not be understood by the server. The server sends that status when no other error is applicable, or if the exact error is unknown or does not have its own error code.
Unauthorized	401	The Unauthorized status is similar to 403, but it comes in place when the server requires Basic authentication (that is, credentials must be provided in the Authorization header), and the request has failed or do not provided it.
PaymentRequired	402	The Payment Required status is reserved for the future use.
Forbidden	403	The Forbidden status indicates the request was valid, but the server will not run the requested operation – for example, if a user does not have the necessary permissions.
NotFound	404	The Not Found status indicates that requested resource is not found but can become available in the future.
MethodNotAllowed	405	The Method Not Allowed indicates a request method is not supported for the requested resource – for example, PUT on a read-only resource.
NotAcceptable	406	The Not Acceptable status indicates the requested resource can generate only an unacceptable content as defined by the Accept header provided with the request.
ProxyAuthenticationRequired	407	The Proxy Authentication Required status indicates the client must first authenticate itself with the proxy.
RequestTimeout	408	The Request Timeout status indicates the server has timed out while waiting for the request.
Conflict	409	The Conflict status indicates the request could not be processed because of conflict in that request.
Gone	410	The Gone status indicates the requested resource is no longer available and will not be available again.
LengthRequired	411	The Length Required status indicates the request did not specify the length of its content despite it is required by the server.
PreconditionFailed	412	The Precondition Failed status indicates the server does not meet one of the conditions the client has provided in the request.
RequestEntityTooLarge	413	The Payload Too Large status indicates the request is larger than the server is able or willing to process.
RequestUriTooLong	414	The URI Too Long status indicates the URI the client has provided is too long for the server to process – for example, too much encoded data appearing in the query string of the GET request.
UnsupportedMediaType	415	The Unsupported Media Type status indicates the request includes an entity of a media type which the server or resource does not support.
RequestedRangeNotSatisfiable	416	The Range Not Satisfiable status indicates the client has asked for only a specific part of the file, but the server cannot afford this – for example, if that specific part lies beyond the file’s end.
ExpectationFailed	417	The Expectation Failed status indicates the server cannot meet the requirements of the Expect header of the request.
InternalServerError	500	The Internal Server Error status is a generic error message indicating an unexpected event has occurred and no more specific information can be provided.
NotImplemented	501	The Not Implemented status indicates the server either has not recognized the request method, or it cannot fulfill the request.
BadGateway	502	The Bad Gateway status indicates an intermediate proxy server received a bad response from another proxy or the origin server.
ServiceUnavailable	503	The Service Unavailable status indicates the server is currently unavailable (because it is overloaded or down for maintenance).
GatewayTimeout	504	The Gateway Timeout status indicates the server was acting as a proxy or gateway and did not receive a response from the target server at the needed time.
HttpVersionNotSupported	505	The HTTP Version Not Supported status indicates the server does not support the HTTP protocol used in the request.
