Working With Project and Project Suite Variables in Keyword Tests

Modifying Variable Values

Obtaining Variable Values

Creating Project and Project Suite Variables

Removing Project and Project Suite Variables

To modify the value of a project or project suite variable, use the Set Variable Value operation:

1. Add the Set Variable Value operation to your keyword test. TestComplete will show a wizard in which you can configure the operation.

2. On the first page of the wizard, choose the variable you want to modify.

   You can add a new variable by clicking Add Variable and specifying the variable's name in the Add Variable wizard.

3. If you selected a table variable, specify the zero-based column and row indexes of the table elements to be set.

4. On the last page of the wizard, select the type of the parameter's value from the Mode drop-down list. Here is a list of the available modes:

   Mode	Description
   Constant	A number, string, Boolean value or any other hard-coded value. Select the data type from the Type combo box (more info).
   Code Expression	A one-line code in the scripting language of your TestComplete project (more info).
   Variable	A keyword test variable, project variable, project suite variable or network suite variable. Select the needed variable from the drop-down list in the Value box (more info).
   Last Operation Result	The return value of the operation that was run before the edited operation (more info).
   Test Parameter	The parameter of the current keyword test. Select the needed parameter from the drop-down list in the Value box (more info).
   Onscreen Object	An application object. To select the needed object, click the ellipsis button in the Value box (more info).
   Table Data	A value from the DB table variable defined in the current keyword test, project or project suite. Select the needed variable from the drop-down list in the Value box (more info).
   Object Property	A property of an application object (more info).
   File Name	A fully-qualified file name. To browse for the needed file, click the ellipsis button in the Value box (more info)

5. Enter the new parameter value and click Finish.

To use the value of a project of project suite variable in your test:

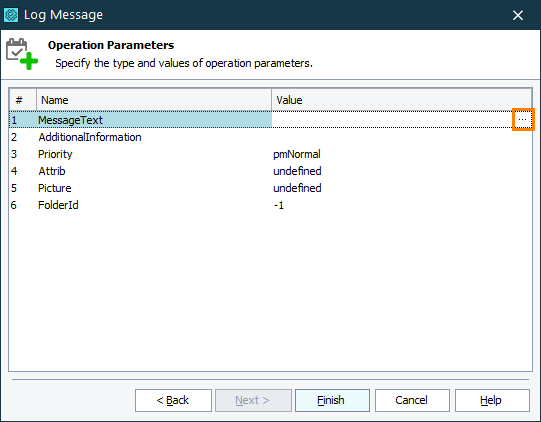

• In the Operation Parameters dialog, select the Value cell and click the ellipsis button. This dialog is usually the last page of the wizard used to create or edit the operation.

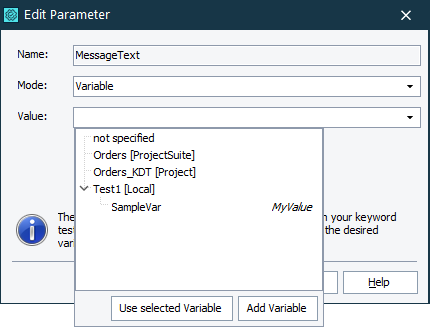

• In the Edit Parameter or Edit Value dialog, select the Variable mode and use the drop-down window to select the needed variable.

  Note: For project or project suite variables of the String, Integer, Boolean, and Double type, the list shows the current variable value making the choice easier.



To create project or project suite variables, use the Variables page of the Project or ProjectSuite editor:

1. Select the Project or ProjectSuite item in the Project Explorer and choose Edit from the context menu, or double-click this project item.

2. In the resulting Project or ProjectSuite editor of the Workspace panel, switch to the Variables page.

3. Right-click within the appropriate section of the Variables page and select New Item.

   • Variables created in the Temporary Variables section do not keep data between test runs. So, each time you start your test, these variables have their default values.

   • Variables created in the Persistent Variables section keep data after the test run. The data is saved to the .tcLS file. You can use these variables for further testing.

     Note:

     Object, Table and DB Table variables cannot be persistent.

4. TestComplete will add a new row to the Variables table. You can then enter the needed values in the table cells.

To delete project or project suite variables, use the Variables page of the Project or ProjectSuite editor:

1. Select the Project or ProjectSuite item in the Project Explorer and choose Edit from the context menu, or simply double-click this project item.

2. In the resulting Project or ProjectSuite editor of the Workspace panel, switch to the Variables page.

3. Right-click within the variable you want to delete and select Delete.

4. TestComplete will delete the variable.
