Generic Test Log - Performance Counters Panel

Applies to TestComplete 15.10, last modified on December 01, 2021

The Performance Counters panel of the test log displays graphs of the performance counters monitored during the test run. The counter values are captured each time a new entry is posted to the test log, rather than at fixed time intervals.

If there were no performance counters monitored during the test run, this panel will not be displayed.

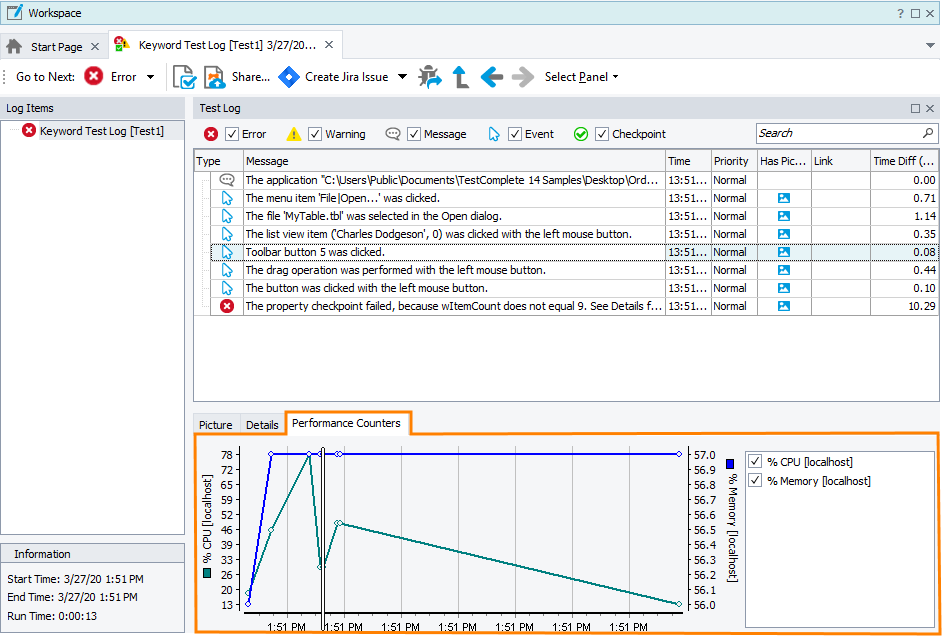

The Performance Counters panel

Click the image to enlarge it.

The panel is visible if you have performance counters added to your project. If the panel is hidden, to display it, you can do one of the following:

  • Click Select Panel on the Test Log toolbar and then click Performance Counters.

– or –

  • Select View > Desktop > Restore Default Docking from the TestComplete main menu.

To add more counters to the graph

  1. Select Tools > Current Project Properties from the TestComplete main menu.

  2. Switch to the Performance Counters category.

  3. Click Add in the ensuing Performance Counters dialog.

  4. Follow the instructions of the Add Counter wizard and click Finish when the desired counter is configured.

  5. Rerun your test and switch to the Performance Counters panel. Now, it contains graphs for the added counters.

To show or hide the legend

  1. Right-click somewhere withing the graph.

  2. Select Show Legend from the context menu.

To show or hide specific counters

To temporarily hide a specific counter in the graph, clear the check box on the left of the counter name shown in the graph’s legend.

To show the graph in the Performance Counters panel, simply select the corresponding check box in the legend.

To zoom the graph in and out

  1. Right-click somewhere withing the graph

  2. Use the Zoom In, Zoom Out or Zoom Default items of the context menu.

For more information on monitoring performance counters with TestComplete, see Monitoring Tested Application Performance.
