SwaggerHub Editor

Last modified on November 29, 2021

This page describes SwaggerHub’s code editor for OpenAPI YAML definitions. SwaggerHub also has a Visual Editor for OpenAPI definitions.

SwaggerHub lets you write API definitions directly in the browser and preview the generated API documentation in real time.

Also, you can use the SwaggerHub extension for Visual Studio Code where you can create, edit, and validate API definitions and domains. The extension is synchronized with SwaggerHub, and all the changes you make are automatically pushed to it. Learn more about the SwaggerHub extension in Visual Studio Marketplace.

SwaggerHub supports OpenAPI 2.0 and OpenAPI 3.0 (with some limitations). API definitions are stored in the YAML format. You can import or paste JSON and it will be converted to YAML. Note that you can download your OpenAPI definitions in both formats, YAML and JSON.

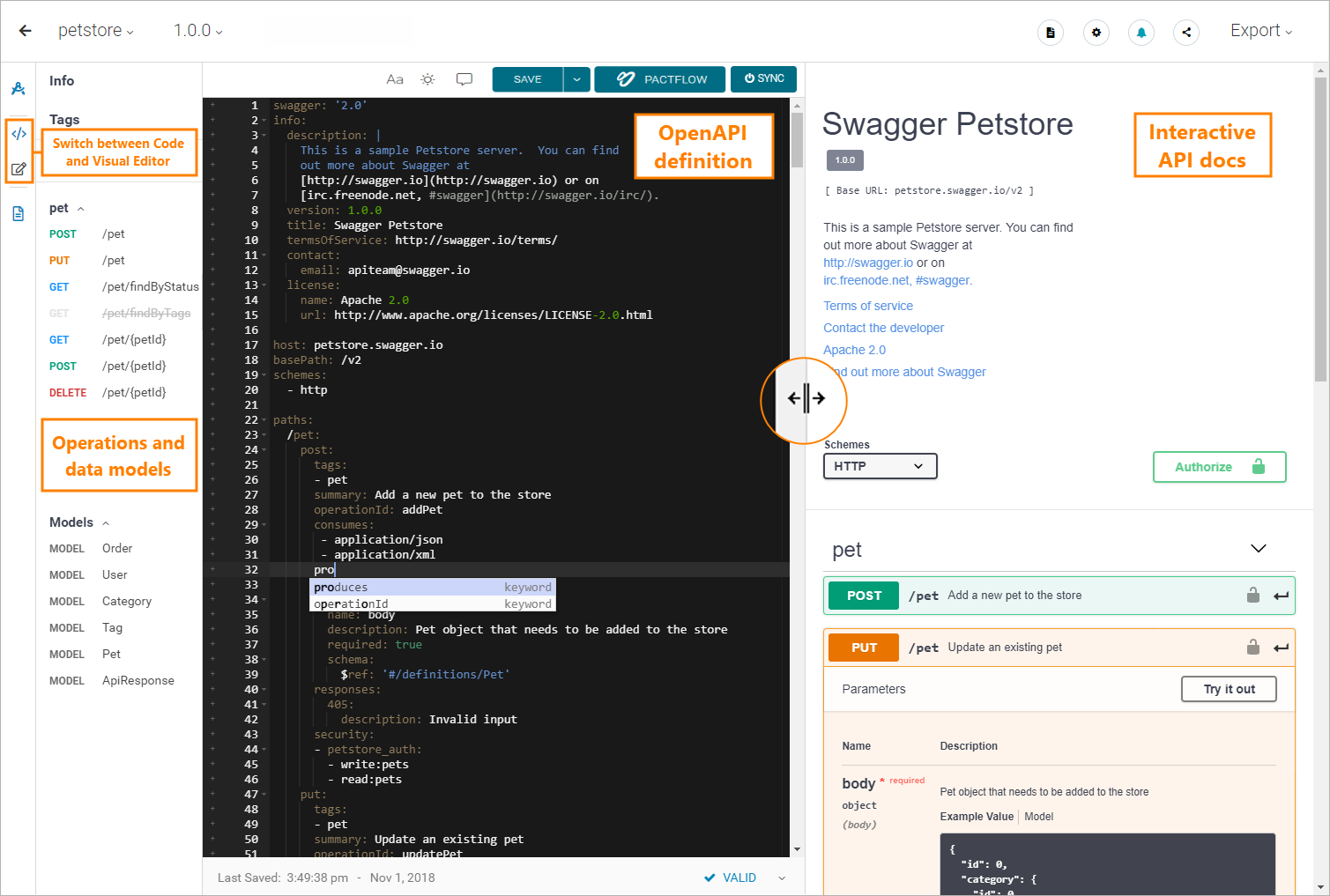

SwaggerHub OpenAPI editor

Click the image to enlarge it.

Overview

SwaggerHub editor is a split view with the editor on the left and interactive API documentation on the right. The editor has two modes:

  •  Code Editor lets you edit the YAML code of your API definition. The editor supports autocompletion for OpenAPI keywords, syntax highlighting, search and replace operations, code folding and keyboard shortcuts.

  •  Visual Editor lets you edit API metadata and operation metadata without having to understand the OpenAPI syntax.

You can switch between the Code Editor and Visual Editor by using the buttons in the sidebar on the left. The editor autosaves drafts every 2 minutes, and you can also save your progress manually at any time.

Interactive API docs are generated from your API definition and are based on Swagger UI. The API docs are updated automatically as you type, helping you visualize the API you are creating. Here you can also make API calls directly in the browser.

The Navigation panel on the left shows a list of operations and models defined in your API. You can search and filter by paths, HTTP verbs, and model names, and quickly navigate to the corresponding place in the YAML code.

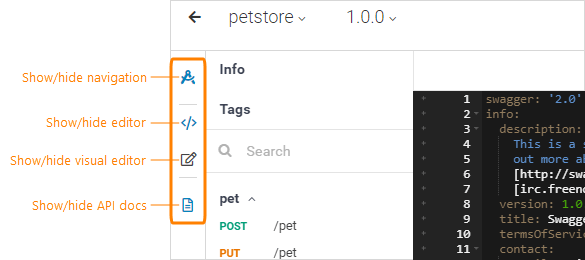

You can hide or show individual panels by using the buttons on the left.

Hide/Show buttons

To undo any unsaved changes in the editor, use the Revert to Last Saved command.

The 'Revert to Last Saved' command
When working on the same API along with other collaborators, keep in mind that SwaggerHub does not support simultaneous editing. Changes are not merged, they are overwritten by the person who saves the changes last. Make sure to coordinate your editing sessions with other collaborators, or use comments to suggest changes.

Syntax validation

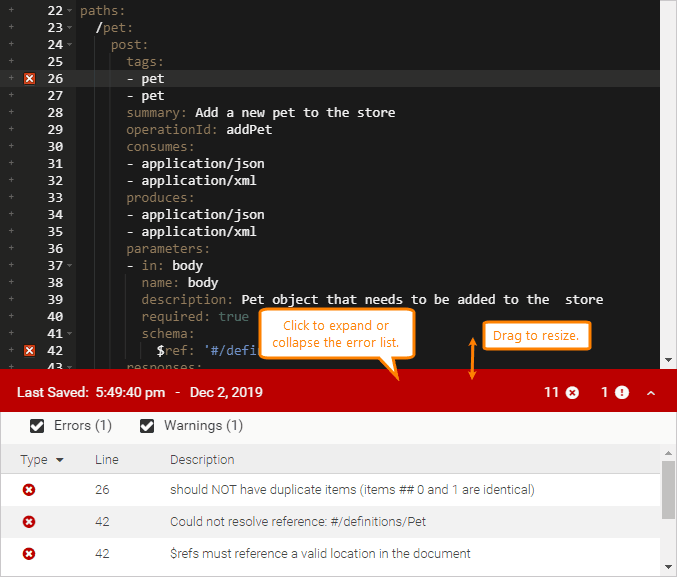

As you type, SwaggerHub automatically validates your API definition and shows any errors or warnings that might occur, such as syntax errors, unresolved references, or unused definitions. To see the error list, expand the validation bar at the bottom of the editor. Click an error message to jump to the line that triggered this error.

Note: SwaggerHub SaaS, SwaggerHub On-Premise 1.20.0 and later use lazy loading for domain references, which affects the way domain errors are surfaced in APIs. See Lazy Loading to learn how to validate both the API and the referenced domains.

If your organization uses API Standardization, this is where API editors can see the style violations found in the current API.

Validation errors

Click the image to enlarge it.

Info panel: manage API and integrations

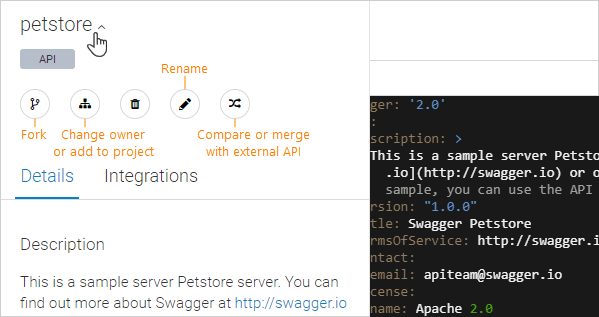

Click the API name in the header area to open the API info panel, where you can rename, compare, or transfer the API. Note: The available commands depend on whether you are the API owner or collaborator.

API info panel

On the Integrations tab of the Info panel, you can configure integrations for your API.

API integrations in the Info panel

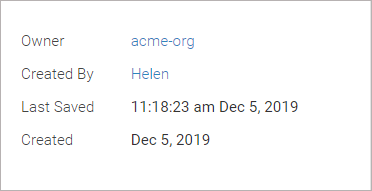

At the bottom of the panel, you can see who created this API version and when, who owns the API, and the date and time it was last saved.

API info: Owner, Created By, Created On, Last Saved
Note: The Created By information is only available for the API and domain versions that were created in: a) SwaggerHub SaaS after November 26, 2019; b) SwaggerHub On-Premise 1.23 and later. Information about earlier versions can be found in historical audit logs.

Version selector

If your API has several versions, you can quickly switch between the versions by using the drop-down menu next to the version number.

Selecting an API version

Editor options

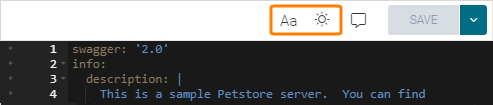

You can change the editor font size and switch between the dark and light syntax highlighting themes. Editor options persist across sessions in your current browser.

SwaggerHub editor options

Miscellaneous

The editor’s toolbar also contains the following items:

 Sync Management

If source control integrations are configured for the current API, click this button to generate the code and push it to the connected repository branches.

View Documentation

Click to view interactive documentation for this API or domain in a new browser tab.

API/Domain Options
  • Edit GitHub Push – Legacy GitHub integration. Use GitHub Sync instead.

  • Reset Changes – Undoes all unsaved changes in the editor.

Enable/Disable Notifications

Click to subscribe to or unsubscribe from email notifications about changes in this API or domain.

Share & Collaborate

Click to invite other users to collaborate on this API.

Export
  • Codegen Options – Here, you can change the code generation options for server stubs and client SDKs.

  • Client SDK – Generates a client SDK for this API in the chosen language.

  • Server Stub – Generates a server stub for this API in the chosen language.

  • Documentation – Generates documentation for this API in the chosen format.

  • Download API or Download Domain – Lets you download the API or domain definition in the YAML or JSON format.

Keyboard shortcuts

The SwaggerHub editor supports keyboard shortcuts for faster editing.

Find/replace

Action Windows/Linux Mac
Find dialog Ctrl + F Command + F
Replace dialog Ctrl + H Command + Option + F
Find next Ctrl + K Command + G
Find previous Ctrl + Shift + K Command + Shift + G
Find all instances of the word under the cursor (case-insensitive) Ctrl + Alt + K Ctrl + Option + G

Editing

Action Windows/Linux Mac
Show the auto-completion list Ctrl + Space Option + Space
Comment out or uncomment the current line Ctrl + / Command + /
Delete the current line Ctrl + D Command + D
Undo Ctrl + Z Command + Z
Redo Ctrl + Y, Ctrl + Shift + Z Command + Y, Command + Shift + Z
Indent selection Tab Tab
Outdent selection Shift + Tab Shift + Tab
Select all Ctrl + A Command + A

Navigation

Action Windows/Linux Mac
Go to line number Ctrl + L Command + L
Go to the next error Alt + E
Go to the previous error Alt + Shift + E

Code folding

Action Windows/Linux Mac
Fold all Alt + 0 Command + Option + 0
Unfold all Alt + Shift + 0 Command + Option + Shift + 0
Fold selection Alt + L, Ctrl + F1 Command + Option + L, Command + F1
Unfold selection Alt + Shift + L, Ctrl + Shift + F1 Command + Option + Shift + L, Command + Shift + F1
Toggle folding F2 F2
