Debugging Test Case Tutorial

1. Run ReadyAPI.

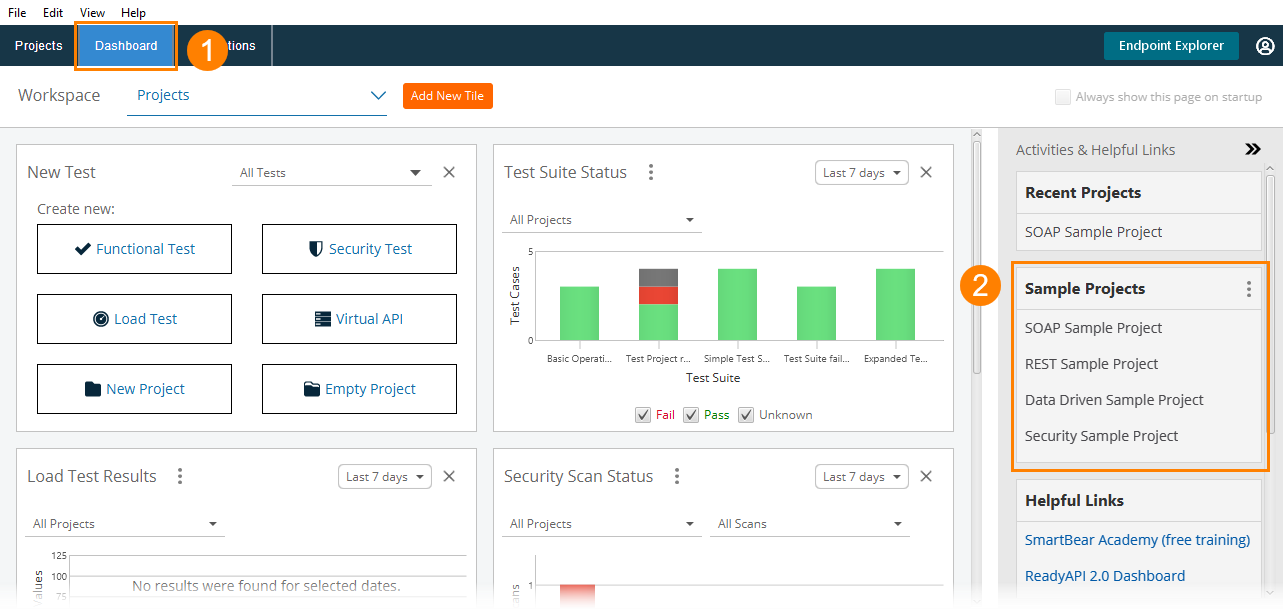

2. On the Dashboard Activities & Helpful Links panel, select SOAP Sample Project to import it into your workspace.



   Click the image to enlarge it.

With a virtual API running to give responses, you can open a test case to run.

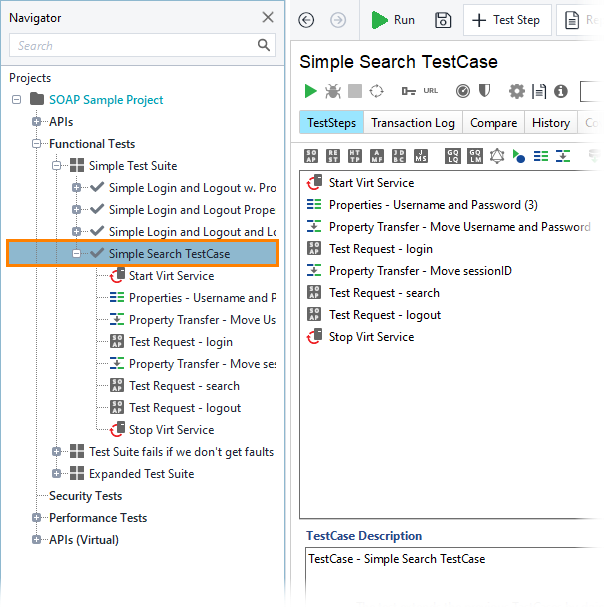

1. In the Functional Tests node, select the Simple Search test case.



   Click the image to enlarge it.

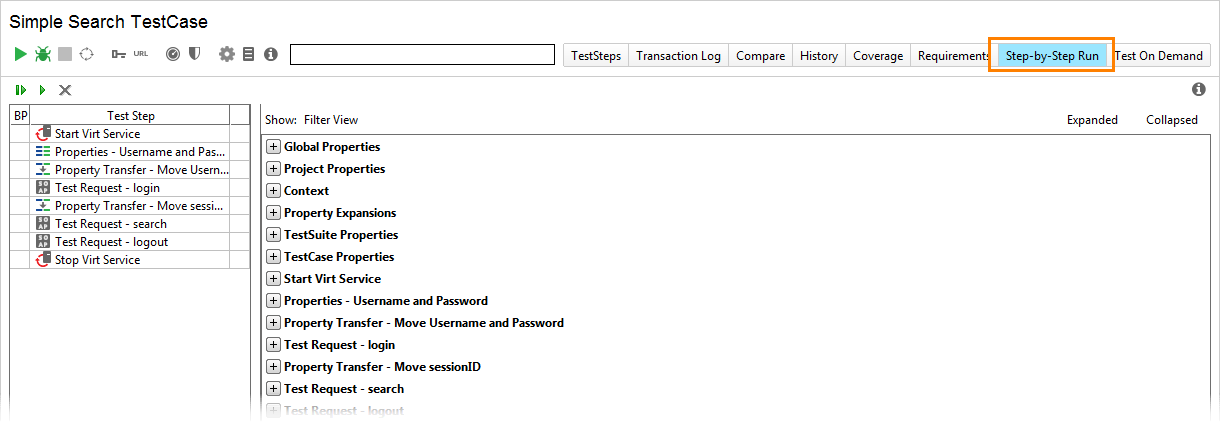

2. Open the Step-by-Step Run page.



   Click the image to enlarge it.

In order to halt execution to view properties, you need to add a breakpoint:

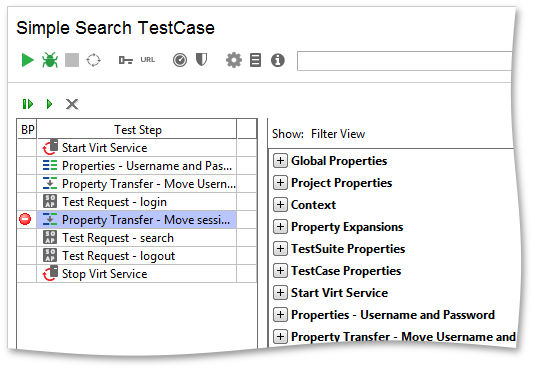

1. Click in the BP column to the left of the Property Transfer test step.

   This will add a breakpoint to your test case. It will halt the execution before the selected test step is being executed.



   Click the image to enlarge it.

   Now, you can run the test case until the next breakpoint.

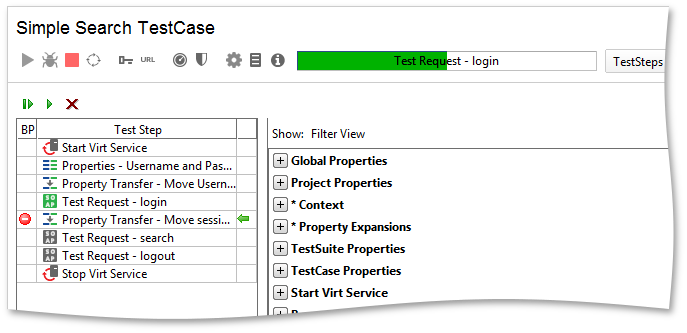

2. Click . The test case will run to the breakpoint.



   Click the image to enlarge it.

   The green arrow () in the rightmost column indicates the next test step to be executed.

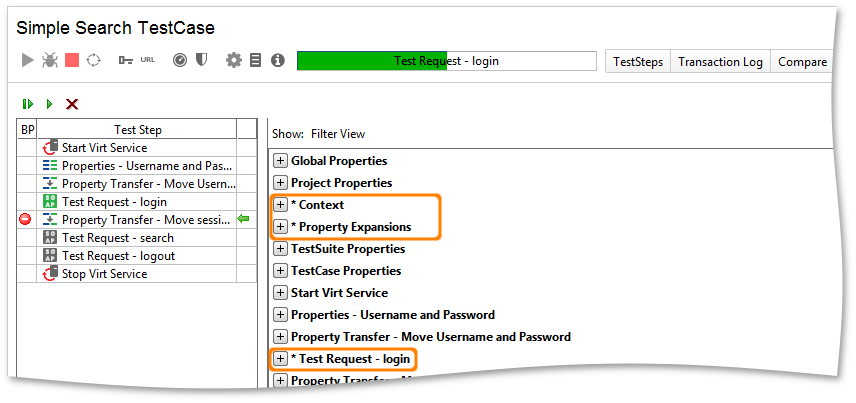

When the execution is halted on a breakpoint, you can use the Properties panel to inspect the status of the test case.

An asterisk (*) next to an item in the list indicates that it contains a property value that has changed since the execution started.

Click the image to enlarge it.

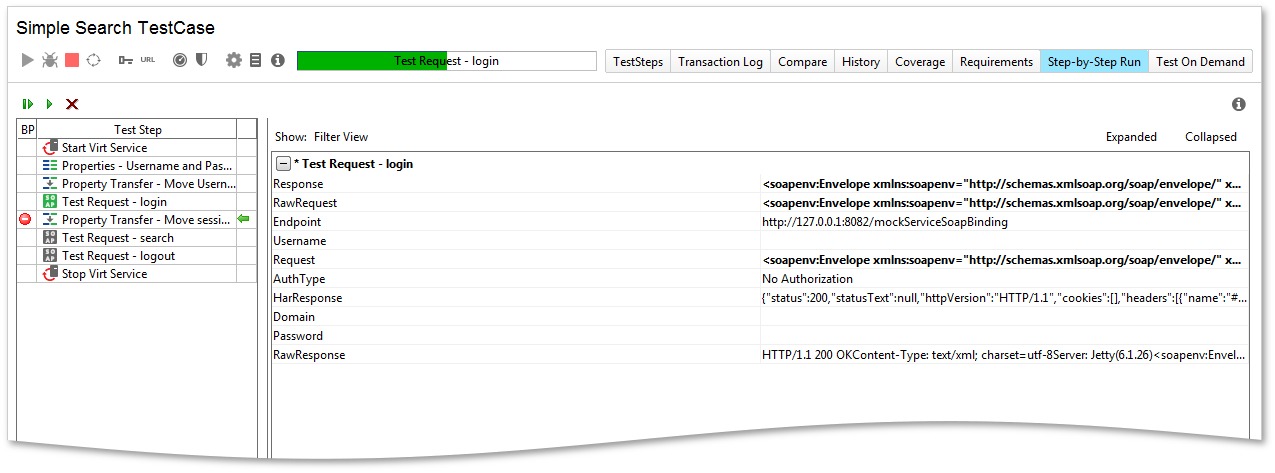

1. Click next to Test Request– Login.



   Click the image to enlarge it.

   The inspector shows the context of the selected test step.

   Further details are available by selecting an item in the list.

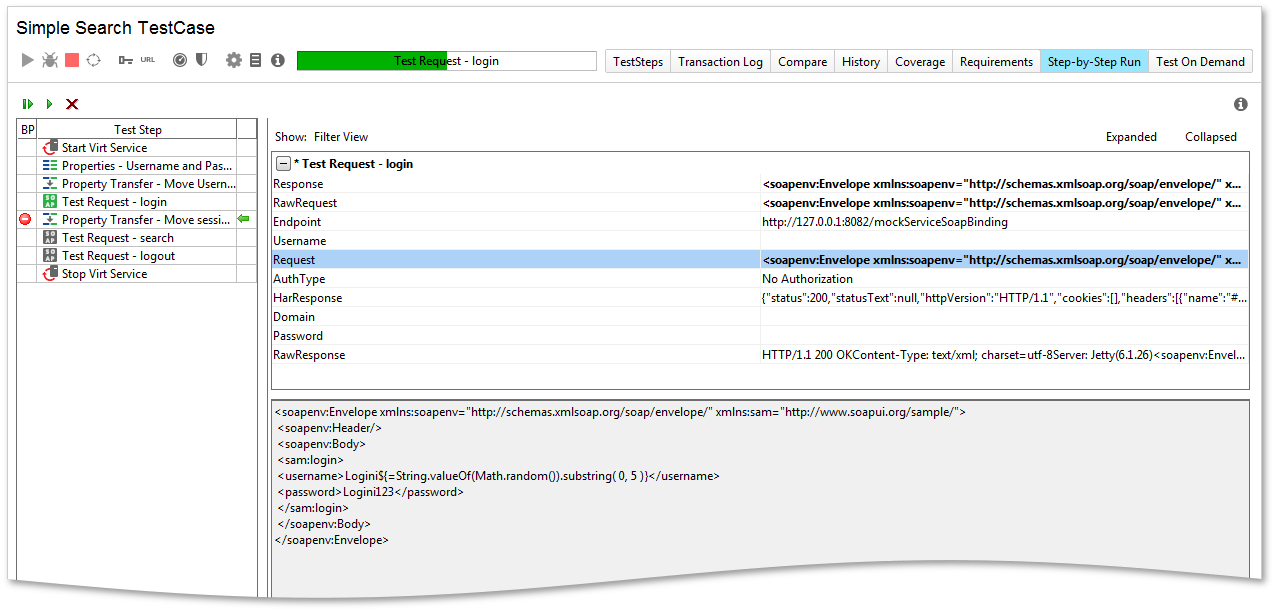

2. Click the Request row in the table. The request as it currently stands will appear:



   Click the image to enlarge it.
